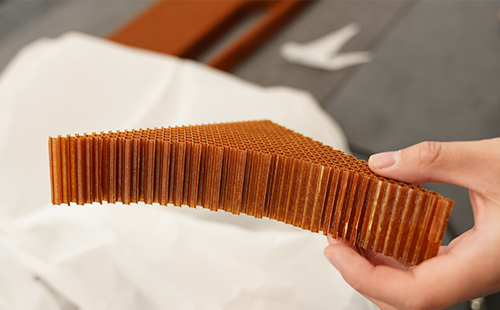

Aramid honeycomb, also known as aramid paper honeycomb, is a hexagonal honeycomb core material fabricated from aramid fiber paper via glue impregnation, expansion shaping and curing molding processes. Featuring lightweight & high strength, high temperature resistance, flame retardancy, sound & heat insulation, fatigue resistance, corrosion resistance and excellent dielectric properties, it boasts a far higher specific strength than aluminum alloy and other metal materials. As a core lightweight substrate for sandwich structures, it is extensively applied in aerospace, high-speed rail transit, new energy equipment, high-end ships and other advanced manufacturing fields.
Core Pain Points of Traditional Aramid Honeycomb Cutting Processes
Aramid honeycomb presents dual processing characteristics of fragile structure and tough fiber properties, requiring ultra-precise control of cutting force and processing temperature. All conventional processing methods have obvious adaptability defects, failing to meet high-end industrial manufacturing standards:
1. Manual Cutting: Uncontrollable Precision and Structural Collapse
Manual cutting relies on manual operation experience and template auxiliary blanking, with completely uncontrollable cutting pressure. Excessive force easily causes collapse and deformation of honeycomb pore walls, directly reducing the compression and shear strength of finished products. Complex structures such as special-shaped contours, inclined planes and V-grooves cannot be standardized, resulting in poor consistency of batch cut pieces. In addition, manual material layout has low utilization rate. Given the high cost of aramid honeycomb raw materials, the waste of leftover materials causes huge economic losses for processing enterprises.
2. Laser Cutting: Thermal Ablation Damages Mechanical Properties
Laser cutting is a typical thermal processing method. The instantaneous high temperature during cutting causes carbonization and embrittlement of aramid honeycomb walls and shrinkage & collapse of pore grids, completely destroying the original mechanical structure of the material. The finished products suffer from attenuated fatigue resistance and shear resistance, failing to meet the structural safety standards of high-end equipment. Moreover, laser processing generates a large amount of aramid fiber dust and irritating flue gas, requiring complex waste gas treatment equipment, which increases environmental protection and occupational health management costs for factories.
3. Mechanical Milling: Impact Stripping and Severe Burrs
Mechanical milling removes excess materials through rotating cutter heads. The strong cutting impact will pull the thin honeycomb walls upward, easily causing pore wall peeling, delamination and node glue separation. The cutting surface has serious burrs and wire drawing, requiring a large amount of manual secondary polishing and trimming. The fiber dust generated during milling also affects the fixing effect of tooling fixtures, further increasing processing deviations. Thick-specification honeycomb processing is prone to over-cutting and dimensional out-of-tolerance, leading to a persistently high raw material scrap rate.
Core Advantages of Vibration Knife Cutting Machine for Aramid Honeycomb Processing
Targeting the processing characteristics of aramid honeycomb (thin-wall collapse tendency, tough fiber and high precision requirements), our oscillating vibration knife CNC cutting machine is specially optimized in terms of cutter head vibration mode, cutting force control and vacuum fixing system, adapting to precision processing of aramid honeycomb core materials with different densities and thicknesses.
1. Normal Temperature Physical Cold Cutting, Zero Thermal Damage
The equipment completes cutting through high-frequency small-amplitude blade vibration without generating high temperature during the whole process. It avoids carbonization and ablation defects caused by thermal cutting, fully retaining the original hexagonal grid structure of aramid honeycomb. The compression resistance, shear strength, flame retardancy and thermal insulation properties of the material remain unchanged, fully complying with structural component performance standards for aerospace and high-end rail transit fields.
2. Flexible Vertical Shearing, No Collapse, No Delamination, Smooth Cuts
Adopting vertical high-frequency shearing mode, the machine generates extremely low lateral cutting impact with precisely adjustable down force. It effectively prevents pore grid extrusion collapse and honeycomb wall pulling & peeling, fundamentally eliminating processing defects such as fiber delamination and node glue separation. The cut pieces feature tight, flat and burr-free edges without wire drawing or missing corners, eliminating the need for manual secondary trimming and directly supporting subsequent skin bonding and assembly processes, greatly improving overall processing efficiency and finished product quality.
3. Integrated Forming of Flat Cutting and V-Groove Inclined Cutting for Complex Structures
Equipped with multi-angle customized cutter heads, the machine supports multi-specification inclined cutting and V-groove processing at 30°, 45°, 60° and other angles, meeting the bending and splicing process requirements of honeycomb core materials. It can complete one-time precise forming of conventional flat cut pieces, special-shaped contours, hollow openings and gradient inclined planes, avoiding segmented processing by multiple equipment, greatly shortening the production cycle of complex honeycomb components.
4. Intelligent Layout Optimization, Reducing High-End Raw Material Loss
Built-in professional intelligent typesetting system automatically identifies cut piece shapes and optimizes layout paths, supporting edge-sharing cutting and dense nesting to maximize the utilization of plate area. Compared with manual layout, the material utilization rate is increased by more than 10%. For high-cost aramid honeycomb raw materials, the material-saving advantage brings significant cost benefits and directly improves the net profit of processing orders.
5. High-Precision CNC Cutting, Stable Batch Consistency
Equipped with industrial-grade servo CNC control system, the cutting accuracy is stably controlled within ±0.1mm. Matched with partition adjustable vacuum adsorption table, it fixes honeycomb core materials gently and firmly, effectively avoiding material sliding and extrusion deformation during cutting. The dimensional and angular consistency of mass-produced cut pieces is excellent, ensuring accurate assembly alignment, greatly reducing rework and scrap rate, and fully meeting the precision assembly requirements of high-end intelligent equipment.
6. Supporting Dust Collection System, Eco-Friendly Low-Dust Operation
A matched centralized dust collection device collects and processes a small amount of fiber dust generated during cutting, effectively reducing dust floating in the workshop. It lowers workshop cleaning pressure and occupational health risks, eliminating the need for large-scale waste gas treatment equipment and easily meeting the environmental protection production standards of high-end composite material processing workshops.
Customized Advantages of Professional Aramid Honeycomb Cutting Equipment
Focusing on high-end composite material processing, our equipment is specially optimized for the special structural characteristics and industrial processing needs of aramid honeycomb, different from general-purpose cutting equipment, with strong customized adaptability:
1. Full-Thickness Adaptive Cutter Head Configuration
Optimized cutter head stroke and force control solutions adapt to full-series aramid honeycomb materials ranging from 0.5mm ultra-thin to 50mm thick specifications. It ensures no pore grid collapse for thin materials and one-time thorough cutting for thick materials, enabling one equipment to cover all-density and all-thickness honeycomb core processing requirements.
2. Multi-Angle Custom Bevel Cutting Solution
Supporting 0-90° arbitrary angle cutter head customization, it adapts to non-standard inclined plane and V-groove bending process requirements for aerospace, drone and other high-end fields. The modular quick-change tool structure requires no body modification, quickly responding to customers' personalized process upgrading needs.
3. Custom Large-Size Table and Production Line Expansion
Custom widened and lengthened processing tables are available according to customer workpiece size requirements, meeting the full-plate cutting needs of large-size honeycomb components for aerospace and rail transit. Meanwhile, it can be connected with automatic feeding and receiving platforms to realize full-process automated production, adapting to the capacity upgrading needs of large-scale mass production workshops.
4. Full-Cycle After-Sales Guarantee
We provide free sample cutting service for customers to verify cutting effect and accuracy before cooperation. After equipment delivery, we provide door-to-door installation and commissioning, one-on-one operator training. We offer rapid response for daily technical problems, with common consumables and accessories delivered from local warehouses, and free long-term equipment software upgrades to ensure stable and efficient operation of the production line.
Conclusion
The core difficulties of aramid honeycomb processing lie in maintaining structural integrity, avoiding fiber delamination and collapse, ensuring high-precision dimensional consistency and controlling high-end raw material loss. Traditional manual cutting, laser cutting and mechanical milling processes either damage the mechanical properties of materials or produce a large number of defective products with high scrap rates, which cannot adapt to the strict standards of high-end equipment manufacturing.
The CNC vibration knife cold cutting machine solves all kinds of aramid honeycomb processing pain points with the advantages of zero thermal damage, non-collapse & non-delamination cutting, integrated high-precision forming, material saving and environmental protection. It can efficiently process standard honeycomb core cut pieces and precisely manufacture complex special-shaped and inclined plane components, becoming the preferred automated blanking solution for aramid honeycomb processing in aerospace, rail transit, new energy and other high-end fields.
If you have cutting demands for aramid honeycomb and various composite honeycomb core materials, welcome to contact us for sample testing and customized cutting solution & equipment quotation.
