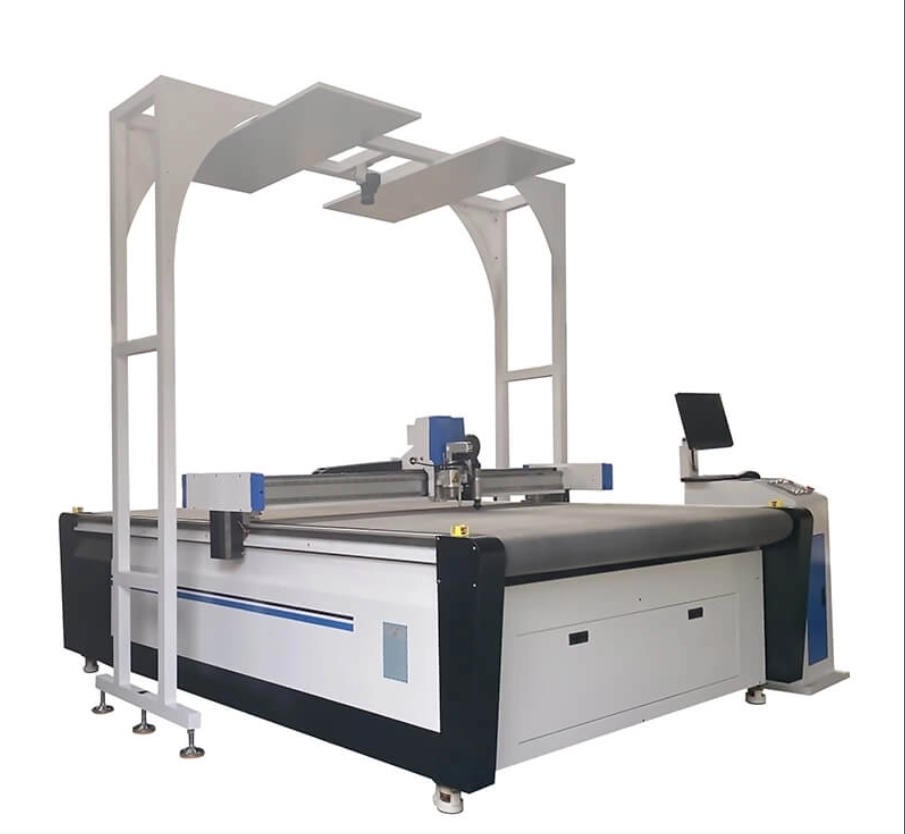

The CNC leather cutting machine is an oscillation knife cutting machine. Just need to import the CAD drawings from the computer to the machine to cut leather. The natural leather cutting machine can cut genuine leather like cowhide, and artificial leather like PU leather, fur, etc.

1. Artificial leather cutting machine cut leather with knife blades. Compared to thermal cutting, it doesn’t produce smoke and smeared edges.

2. Fur cutting machine has vision systems for genuine leather. It can recognize and avoids holes, and spots on the leather.

3. CNC leather cutting machine adopts computer control. Avoid manual errors by hand. Can makes more accurate and better quality products.

4. Natural leather cutting machine has emergency stop switches on four corners. And has installed infrared sensor switches. Protect operators and equipment.

5. Automatic leather cutting machine is an intelligent cutting device. Just import the CAD drawings into the machine and cut out the desired shape.

6. Artificial leather cutting machine uses a honeycomb aluminum work platform. It is strong and high precision.

7. The fur cutting machine can be equipped with different tools to cut different materials.

2. Fur Cutting Machine Details

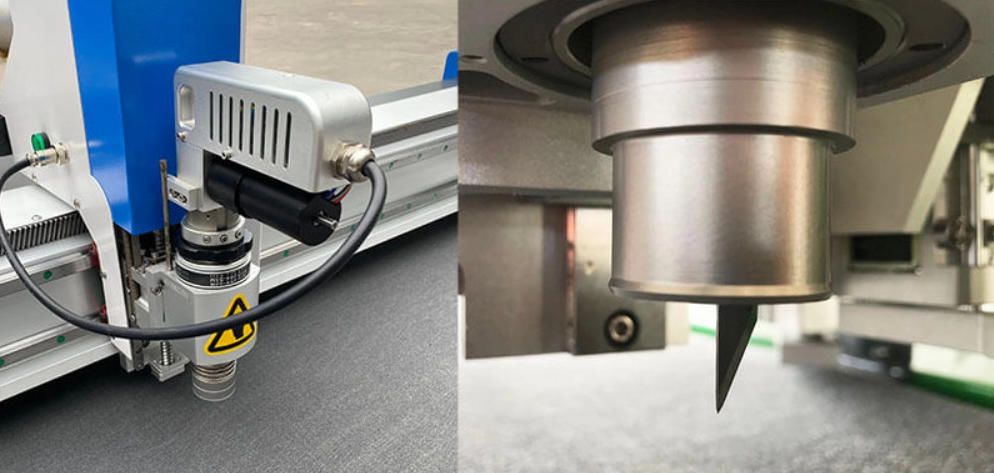

1. CNC leather cutting machine uses oscillation cutting technology. The cut tool is a sharp tungsten steel blade. The blade vibrates up and down at a high frequency of 16,000 times per minute. Increased cutting speed. Cut edges are beautiful and burr free. Unlike thermal cutting methods such as lasers, blade cutting will not produce smoke, paste edges, yellow edges, and other problems. More environmentally friendly and healthy.

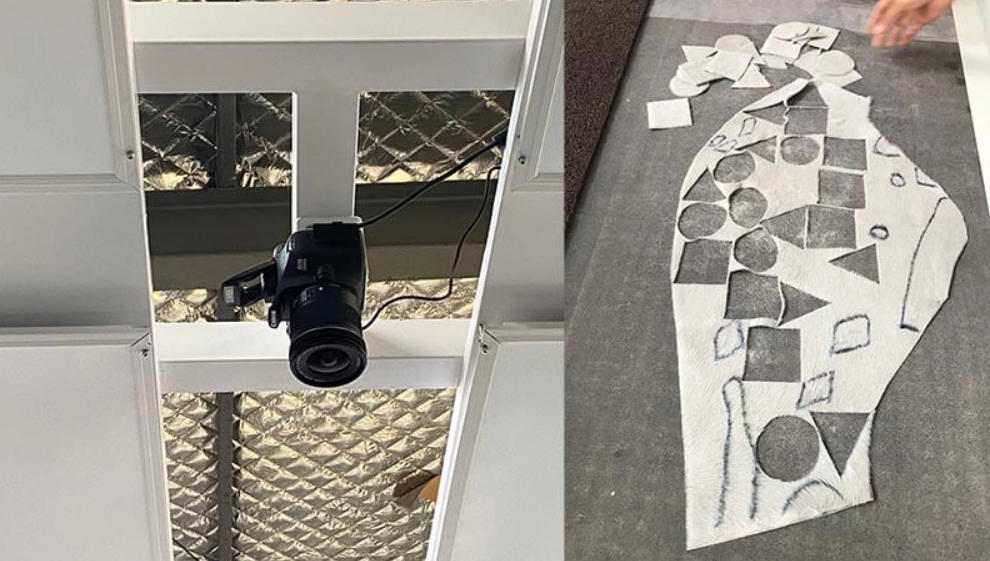

2. Natural leather cutting machine has a camera vision system to recognize defects like scars, holes, and spots on genuine leather. The camera is installed above the worktable. Genuine leather is put on the worktable. The camera shoots the worktable and then the contour of the irregularly shaped dermis is extracted. And identify the blemish areas marked on the dermis. These flawed areas can be avoided when cutting.

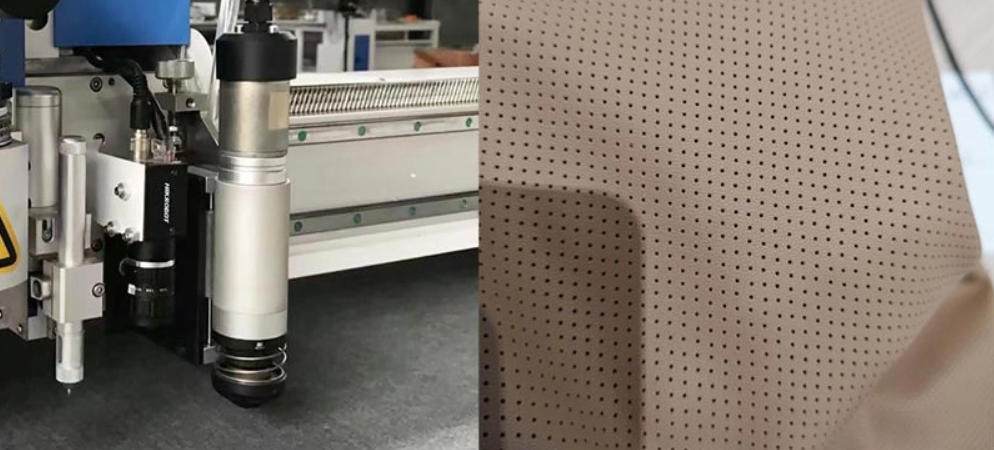

3. Automatic leather cutting machine can install an extra punching tool to make holes on leather. Punching tools and cutting tools work together. The punching position and cutting position are matched. It is possible to punch holes in the leather first and then cut them off.

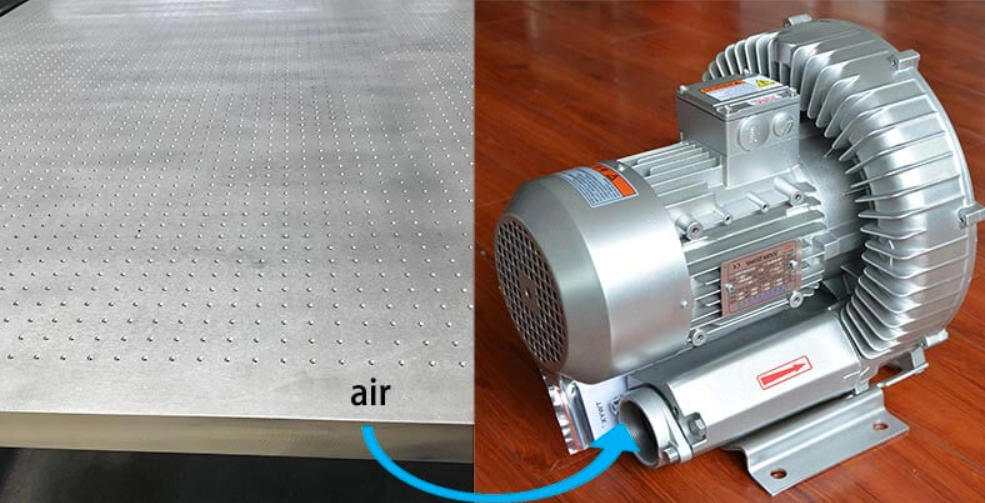

4. The working table of the artificial leather cutting machine is a vacuum adsorption table. The material is fixed by the air pressure formed by the vacuum pump. The vacuum pump starts and stops automatically according to the cutting work, without manual control.

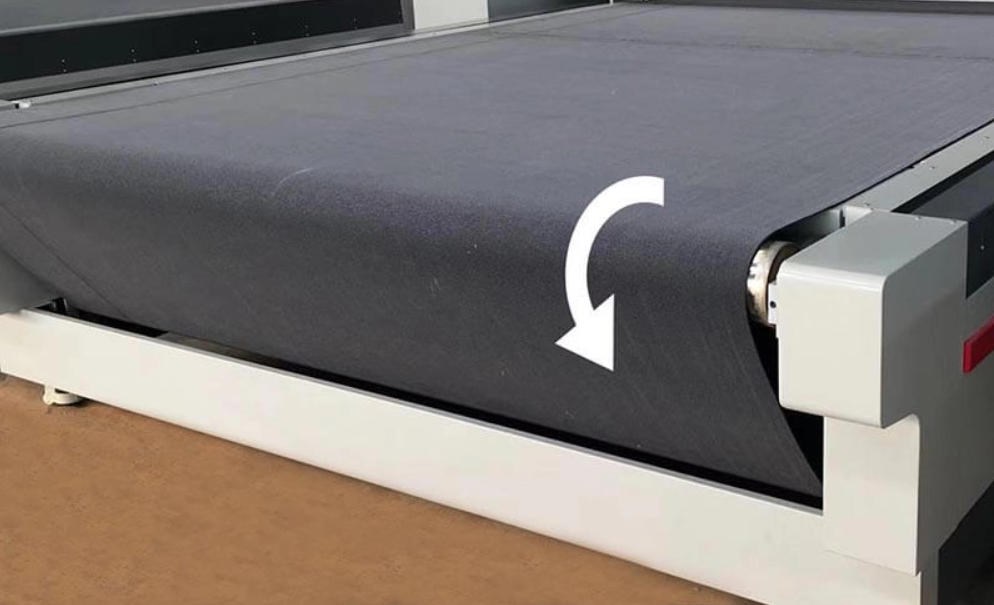

5. Fur cutting machine has auto feeding conveyor. The material can be moved forward automatically. Achieve continuous cutting of roll material. After cutting the material on the table. The automatic feeding conveyor automatically pulls the material behind the table. and continue cutting.

3. CNC Leather Cutting Machine Application

The natural leather cutting machine can cut genuine leather like cowhide, and artificial leather like PU leather, fur, etc.

CNC leather cutting machine is a type of CNC cutting machine. Natural leather cutting machine is used for high precision cutting of heavier flexible and semi rigid materials.

The automatic leather cutting machine is used for cutting all kinds of leather, garment materials, KT board, chevron board, honeycomb board, car stickers, adhesive, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, composite materials, etc.

Fur cutting machine is widely used in sign and graphics, digital printing, packaging, automotive, recreational boat, exhibits and fixtures, sign making, gaskets, arts and crafts, and other industries.
