EPS Mould Making Machine is the heavy-duty CNC Router for all kinds of mold making. Such as wooden wood, Foam mold, aluminum mold, and other non-metal molds. This CNC Router machine is designed with a special machine structure and installed with a high configuration in order to get high speed, high precision, and good performance. The important machining parts of the EPS Cutting Machine tool are subjected to annealing and other heat treatment processes. After the machining is completed, the three-coordinate measurement is performed to ensure the accuracy of the parts.

This CNC Foam Router is widely used in the production of various molds. Lost molds, automobile foam molds, plaster molds, paraffin molds, large ship wood molds, aviation wood molds, propellers, train wood molds, etc.

Suitable Materials

Styrofoam, Wood, EPS, other non-metal carbon mixed compound, plastic, PVC, Acrylic, Aluminum, Copper, Composites, MDF (Medium-Density Fiberboard), Plywood, Particleboard, Wood Veneer, etc.

Applications

1, Mold Industry. Such as casting mold, Automobile, ship, yacht, aviation industry, rail transportation, etc.

2, Large 3D curved surface and shape processing.

Advantage of EPS Mold CNC Carving Machine

1. This CNC Router Foam Cutter uses a Japanese THK guide rail, it is maintenance-free and self-lubricating for life.
2. This CNC Styrofoam Cutter Adopts Italian HSD high-speed electric spindle with high-altitude rotation speed reaches 12000RPM, which ensures the optimization of machining efficiency.
3. The whole lost foam casting workbench of this CNT Thermocol Cutting Machine has undergone strict annealing and other heat treatment processes to ensure the structural stability and rigidity of the bed.
4. This CNC Polystyrene Cutting Machine uses the new-generation system from Taiwan which is safe and reliable in operation, efficient in reading code, and it has an online simulation function and online monitoring function to ensure efficient and safe processing

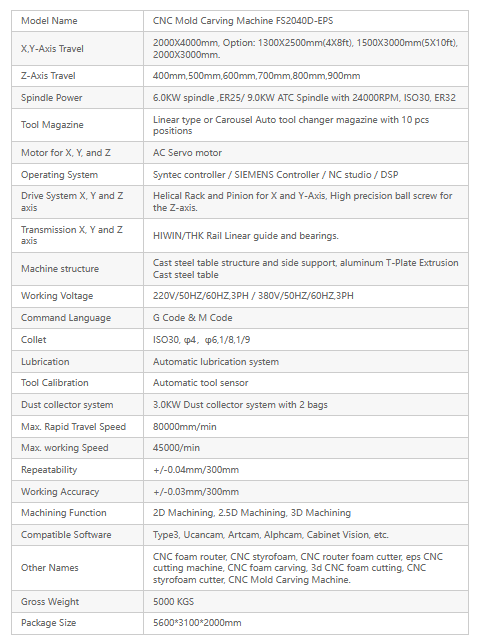

Parameter Data

Model Name	CNC Mold Carving Machine FS2040D-EPS
X,Y-Axis Travel	2000X4000mm, Option: 1300X2500mm(4X8ft), 1500X3000mm(5X10ft), 2000X3000mm.
Z-Axis Travel	400mm,500mm,600mm,700mm,800mm,900mm
Spindle Power	6.0KW spindle ,ER25/ 9.0KW ATC Spindle with 24000RPM, ISO30, ER32
Tool Magazine	Linear type or Carousel Auto tool changer magazine with 10 pcs positions
Motor for X, Y, and Z	AC Servo motor
Operating System	Syntec controller / SIEMENS Controller / NC studio / DSP
Drive System X, Y and Z axis	Helical Rack and Pinion for X and Y-Axis, High precision ball screw for the Z-axis.
Transmission X, Y and Z axis	HIWIN/THK Rail Linear guide and bearings.
Machine structure	Cast steel table structure and side support, aluminum T-Plate Extrusion Cast steel table
Working Voltage	220V/50HZ/60HZ,3PH / 380V/50HZ/60HZ,3PH
Command Language	G Code & M Code
Collet	ISO30, φ4，φ6,1/8,1/9
Lubrication	Automatic lubrication system
Tool Calibration	Automatic tool sensor
Dust collector system	3.0KW Dust collector system with 2 bags
Max. Rapid Travel Speed	80000mm/min
Max. working Speed	45000/min
Repeatability	+/-0.04mm/300mm
Working Accuracy	+/-0.03mm/300mm
Machining Function	2D Machining, 2.5D Machining, 3D Machining
Compatible Software	Type3, Ucancam, Artcam, Alphcam, Cabinet Vision, etc.
Other Names	CNC foam router, CNC styrofoam, CNC router foam cutter, eps CNC cutting machine, CNC foam carving, 3d CNC foam cutting, CNC styrofoam cutter, CNC Mold Carving Machine.
Gross Weight	5000 KGS
Package Size	5600*3100*2000mm




Features and Machine Pictures:

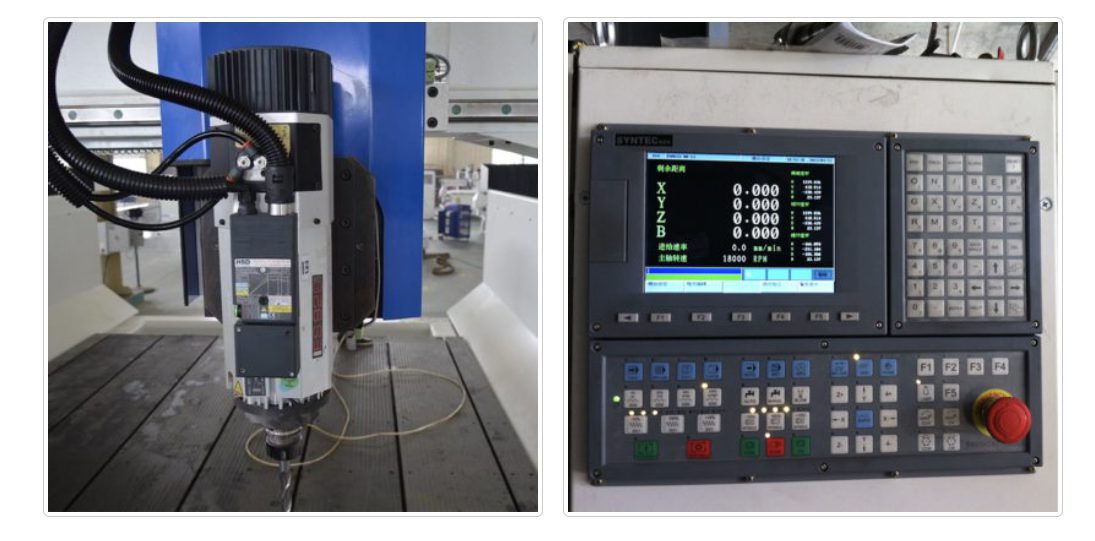

• 9.0KW HSD ATC Spindle from Italy. 24000RPM, ER32, Very Powerful and rigid.
• Syntec controller from Taiwan

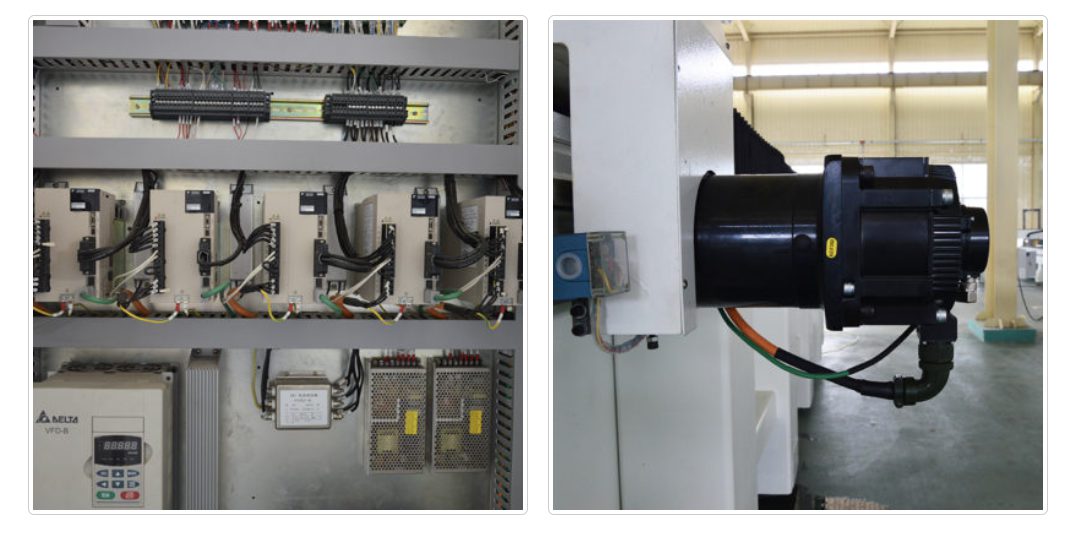

• YASKAWA AC Servo motors from Japan.  Powerful and high precision

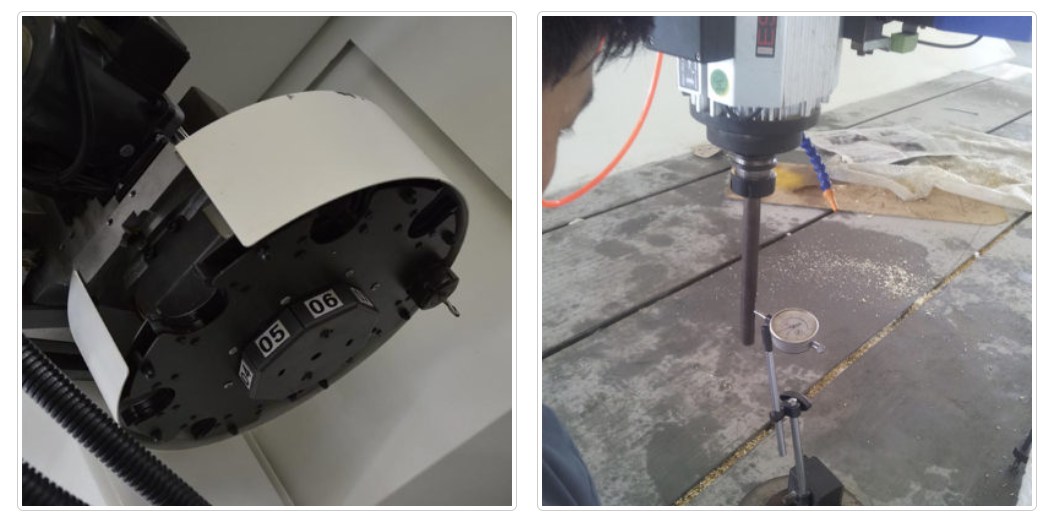

• Carousel automatic tool changer with 10 pcs position.
• Strict inspection for machine accuracy.



• 4 Axis Rotary head for mold making.

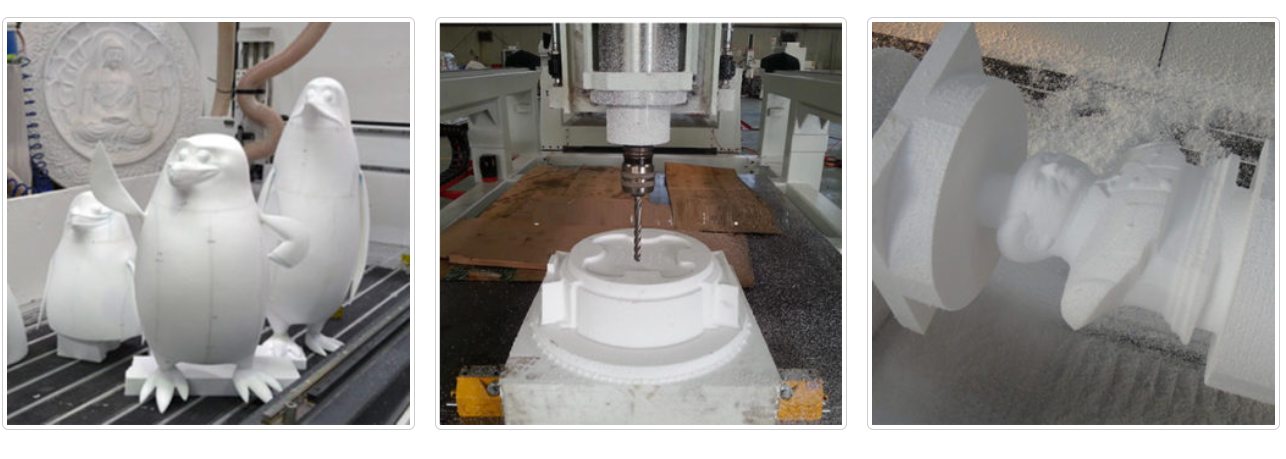

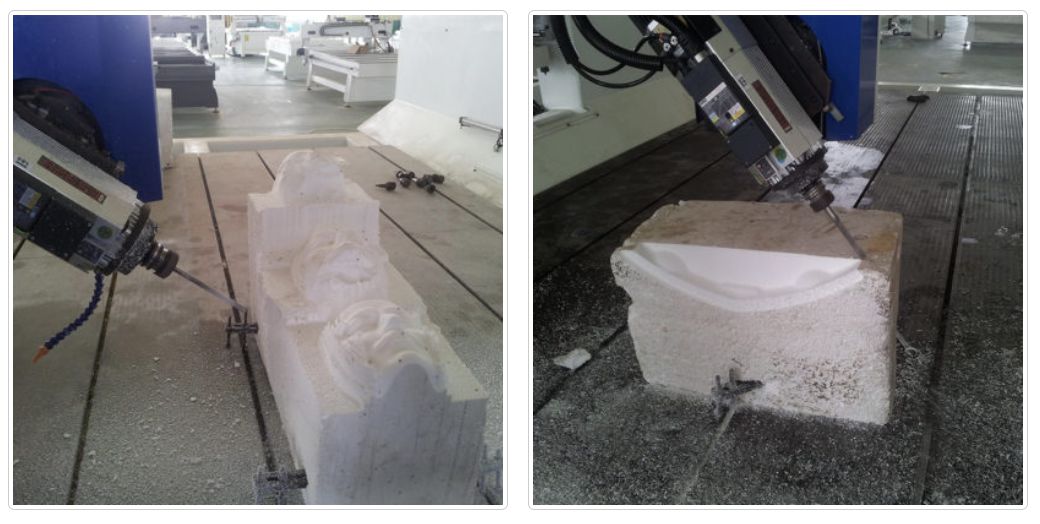

Projects by CNC mold carving machine
