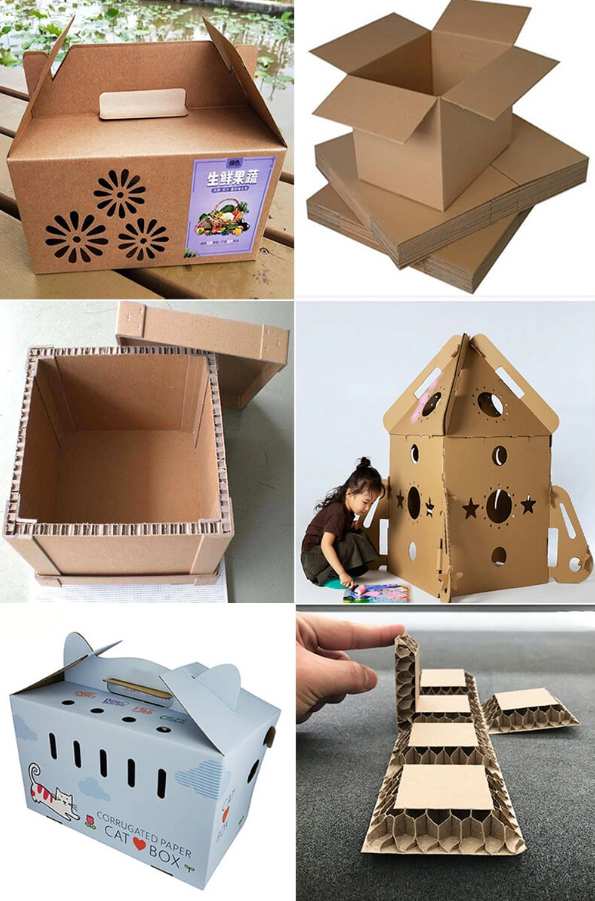

The cardboard cutting machine is equipped with a cutting head, pressing wheel tool, V cut tool and other cutter tools. It can cut cardboard. The press wheel tool can press folding lines on cardboard, and V grooves can be cut in thick cardboard. Only CAD drawings are needed to make cartons, booths, models, cardboard toys, etc. Professional for customizing various cardboard products.

1. Cardboard Cutting Machine Description

1. Cardboard box cutting machine uses top brand Taiwan square linear guide, Japan YASKAWA servo motors and drivers. Good parts ensure high precision, fast work speed, and a long lifetime.

2. Cardboard cutting machine uses welded body with a thick square steel structure. And treated at high temperatures. Ensures the machine has high precision and super long service life.

3. The machine vacuum table is an aluminum honeycomb structure. High vacuum power pressure can fix the work pieces firmly. Not easy to deform, sound absorbing.

4. Cardboard cutting machine is designed easy to install and operate.

5. Cardboard box cutter has infrared sensors and emergency stop switches. Safety devices can protect workers and machines.

6. Cardboard knife cutting machine cuts cardboard with knife blades. Knife cut has no air pollution, and no burning edge.

The cardboard knife cutting machine has multi tools for different cardboard products.

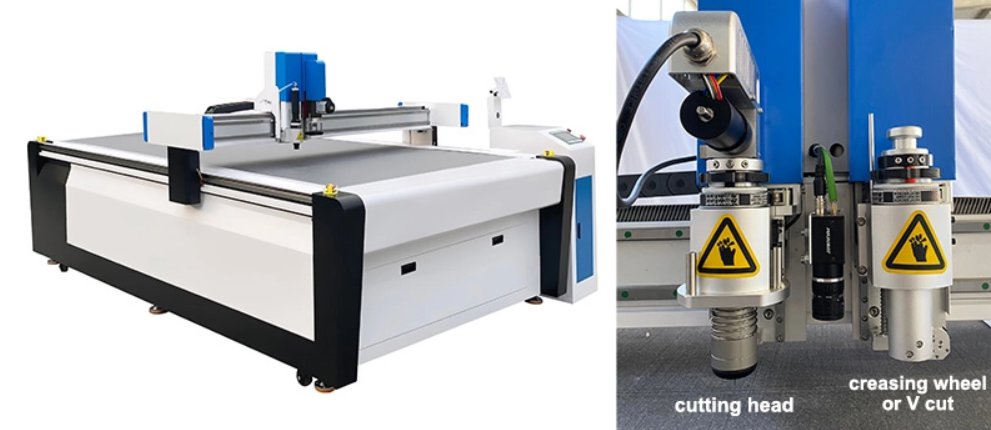

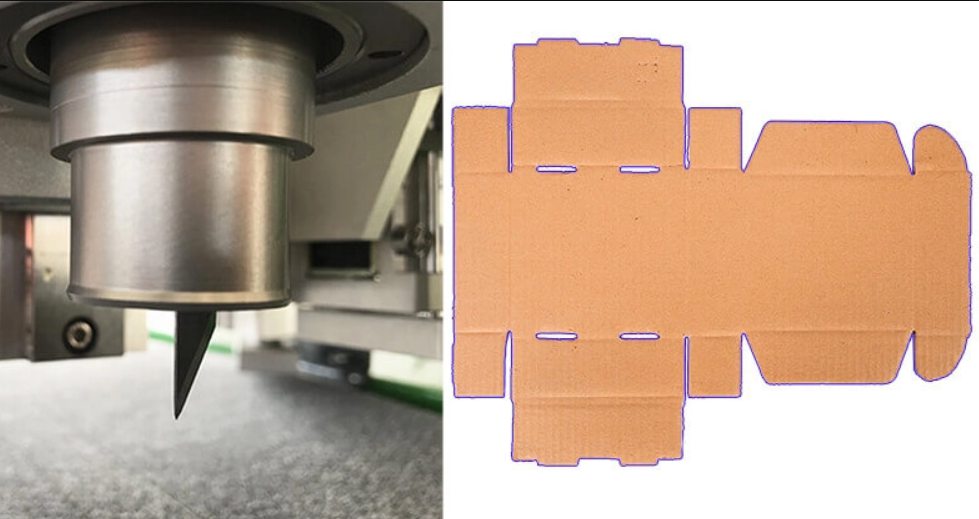

Knife cutting head: The knife cutting head is suited for cutting corrugated cardboard, carton, PP cardboard, and honeycomb cardboard. The cut edge is very perfect.

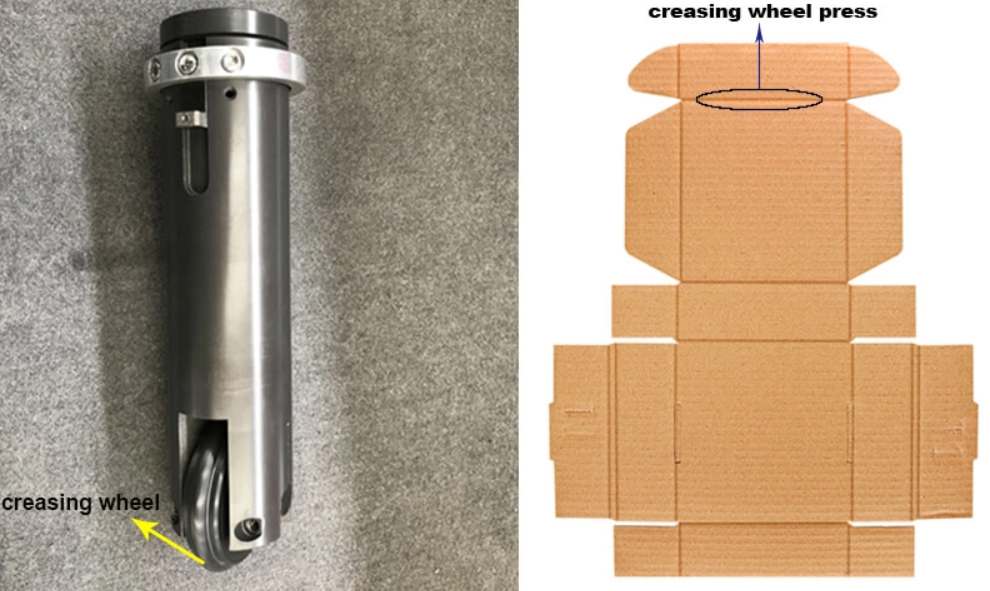

Creasing Wheel: cardboard box cutting machine has a group of crease wheels with different widths for folding cartons and corrugated plastic.

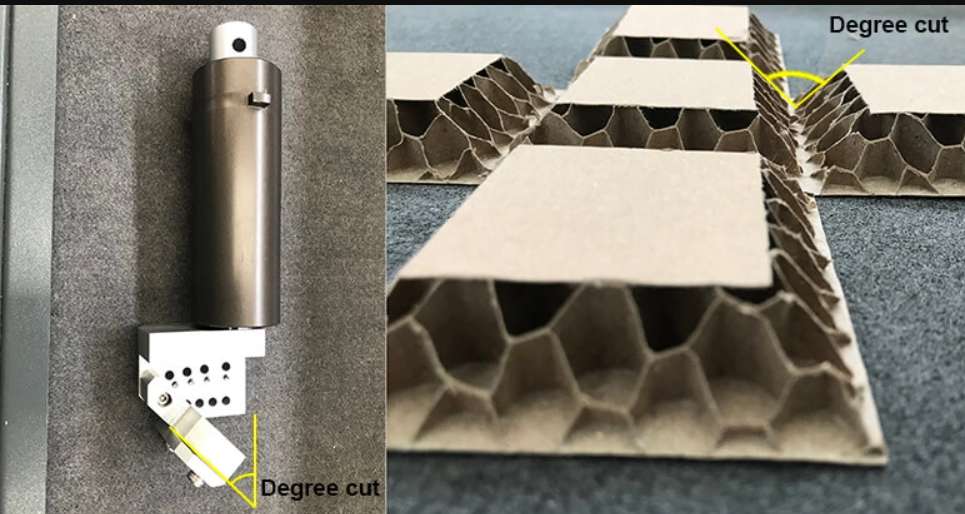

V CUT: The V cut tool can be set for cutting at 5 different angles  (0°, 15°, 22.5°, 30°, 45°).

2. Machine Application

The cardboard box cutting machine is a newly designed carton box sample making system. The cardboard knife cutting machine has perfect work, high cut speed, and cut precision, and it's easy to operate.

The ardboard die cutting machine makes cutting, creasing, and degree cutting available in one machine. It could meet sample making or small batch product of the packaging company.

The cardboard cutting machine can cut cardboard, corrugated board, chipboard, foam board, plastic board, leather, cloth, honeycomb board, KT board and etc. We have a good reputation in markets of package, print, die cutting, gasket, sign industries, leather, textile, foam, rubber, etc.

1. Cardboard box cutting machine for the package solutions.

Cardboard cutting machine offers the best solution to make samples and small batch production of package industries. It satisfies different kinds of material cutting, such as honeycomb cardboard, corrugated cardboard, and solid fibreboard. It can connect with other software well with powerful data conversion software. Machine software supports the most popular design software and formats files.

2. Cardboard box cutter has different tools: oscillating knife, creasing wheel, punching, v cut, marking pen and etc.

3. The cardboard die cutting machine can cut different cardboard: folding cartons, corrugated boards, white cardboard, grey cardboard, foam inserts, printed cardboard and etc.

4. Available Cutting Area: 1300mm * 1100mm, 1700mm * 1300mm, 1200mm * 1600mm, 2000mm * 1100mm, 2500mm * 1600mm, and other sizes can be customized.
