Plasma Cutting Machine hc1325 is the ideal fit for the customer who wants high performance and with high cutting quality for metal but with a cost-effective price. The CNC Plasma Cutting Machine is configured with a rigid welded frame that avoids vibration and with excellent cutting precision. Automatic arc pressure adjustable device is installed with this metal cutting machine. This automatic height adjusts the controller for plasma cutting torch is an automatic height control module integrated with mechanical lifting and electric control features, which is specially designed for plasma cutting machines and it is very simple and easy to use. It makes sure the cutting quality very direct.

There are many kinds of power sources for the customer to choose according to the metal thickness. Such as 65A,80A,100A,125A ,160A and 200A. And the working size of the plasma cutting machine is also customized.

Applications and Suitable Material

It is suitable for cutting kinds of metal materials like low carbon steel, alloy steel, and non-ferrous metal and for the industries related to metal cutting, such as boiler pressure container manufacturing, chemical container manufacturing, industrial power station construction, metallurgy, chemicals, aviation, and aerospace industry, automobiles and vehicle manufacturing, construction and so on.

Advantage of CNC Plasma Cutting:

1. The Plasma Cutting Machine can cut all metal sheets. The cutting area is very wide.
2. The cutting speed of the metal cutting machine is very fast and the efficiency is high. The cutting speed can reach more than 10m/min.
3. The cutting precision is higher than the flame cutting machine. The underwater cutting has no deformation, and the fine plasma cutting has higher precision.

Features of Metal Cutting Machine:

1. The Plasma Cutting Machines use a professional plasma CNC system. It is all offline work and humanized operation.
2. The CNC Plasma uses the advanced USB interface to work offline with fast data transmission and does not occupy computer resources.
3. This  Metal Cutting Machine can be compatible with a variety of software.
4.  The machine is with the function of continued carving when power outage and breakpoint. And the function of processing time prediction and automatic tool setting.

Working Procedure of Plasma Cutter:

1. Convert the working file to DXF by AUTO CAD or use existing Solid-works
2. Import the parts drawing of DXF format or DWG format into the FastCAM software for nesting and conversion, and then output NC NC program (generally it is G code and EESI format code)
3. Copy the converted NC program(G Code file ) to the plasma cutting machine controller system by USB Disk.
4. Set working parameters according to the material and thickness of the selected program.
5. Adjust the position of the torch on the plate and start the program for cutting;
6. End cutting, cutting, and slag removal.

Parameter Data

Features and Machine Pictures:

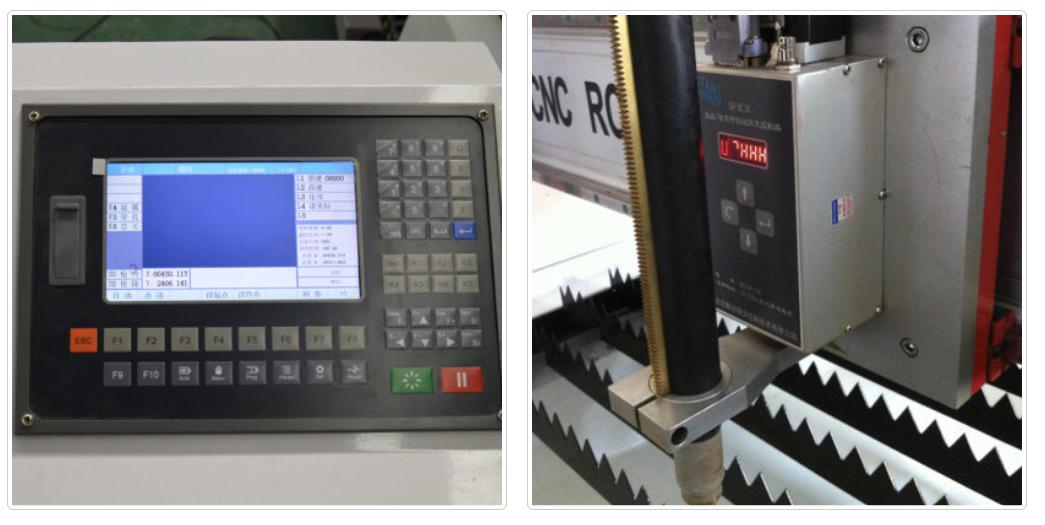

• Start Plasma cutting Controller which is a professional plasma cutting machine. Simple to operate and easy to learn. Powerful and stable.
• The automatic Arc Pressure controller adjusts the plasma cutting height automatically. Make sure the high-quality cutting performance.

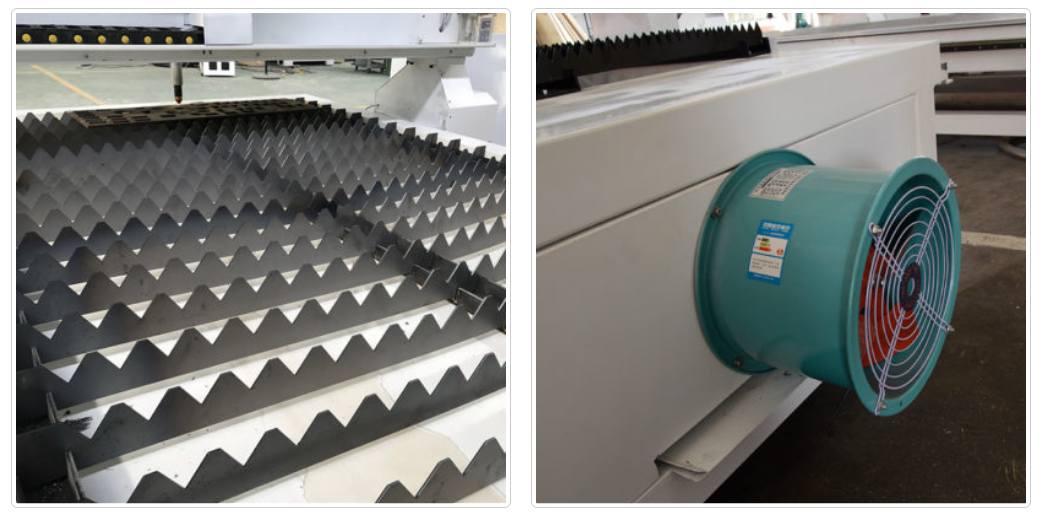

• Plasma cutting table, rigid and stable, professional for metal cutting.
• Smoke exhaust device to make sure the working environment is clean.

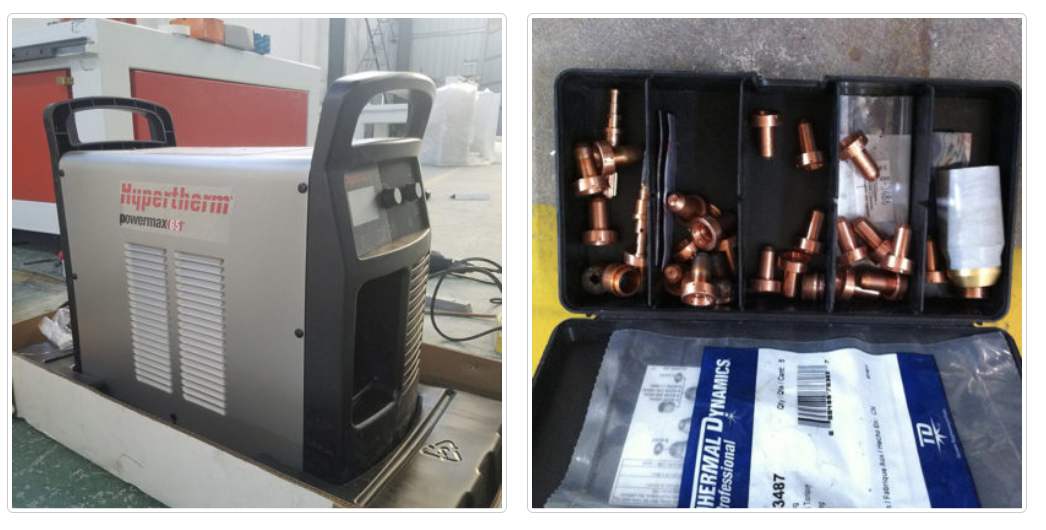

• We use the Hypertherm plasma power source which is mature, reliable, and efficient. Easy broken parts for a plasma power source to make a sure easy replacement for the customers.

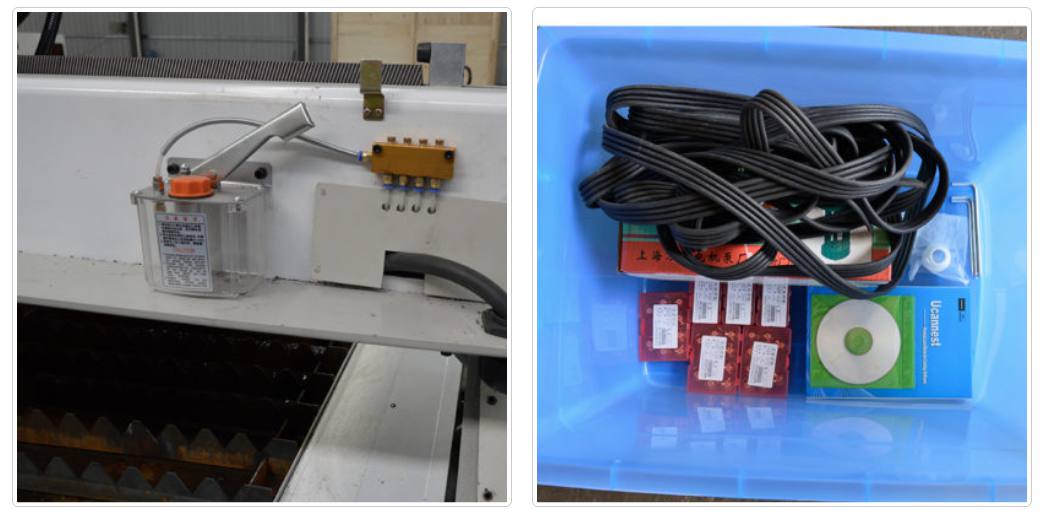

• Automatic lubrication system to lubricate the linear guide and ball screw timely to make sure the plasma cutter working smoothly and with long working life.
• ToolBox along with the metal cutting machine.



Projects by Metal Cutting Machine



Optional Items:

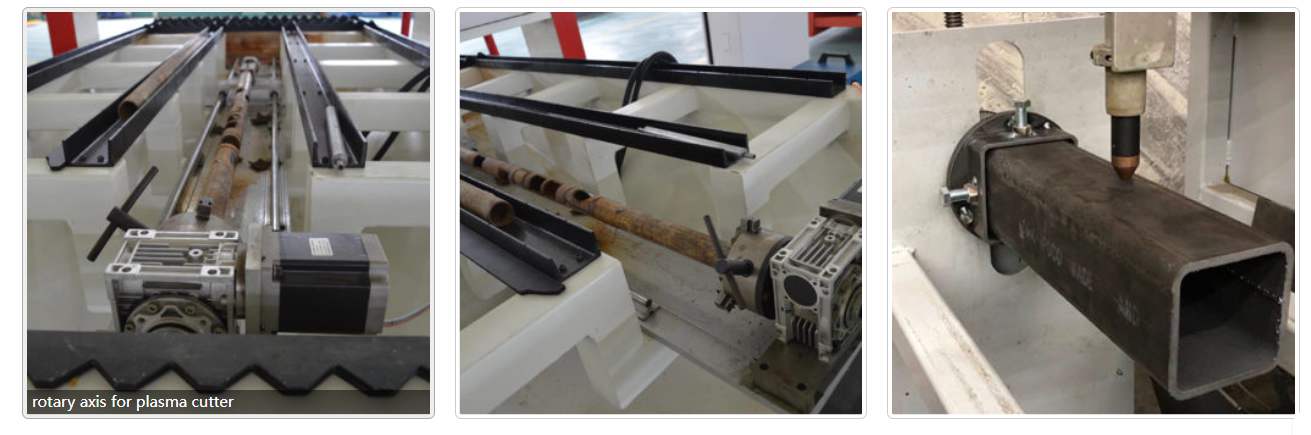

Rotary Axis for metal tube or Steel Pipe cutting:
