Polyester Film (PET film) is a high-performance flexible material with excellent tensile strength, light transmittance, chemical stability and insulation properties. It is an indispensable core material for electronic display screens, photovoltaic backsheets, new energy vehicle accessories, high-end food and medical packaging, as well as printed label manufacturing. As downstream industries continue to upgrade towards high precision and high functionality, PET film processing has faced stricter technical requirements. Modern production demands perfectly smooth cutting edges without burrs, zero thermal deformation and zero carbonization damage, which traditional processing equipment can hardly achieve. In this context, the CNC digital oscillating knife cold cutting machine has become the preferred processing device for high-end PET film manufacturing by virtue of its unique physical cold cutting advantages.
Working Principle of CNC Oscillating Knife Cutter: Pure Physical Cold Cutting Technology
The core competitiveness of the industrial oscillating knife film cutting machine lies in its high-frequency vibration cold cutting mechanism. Driven by a high-performance servo motor, the cutting blade performs high-speed vertical reciprocating vibration at a frequency of thousands to tens of thousands of times per minute. The blade penetrates the PET film with tiny and rapid impact movements, achieving ultra-smooth cutting effects similar to a zipper without pulling or squeezing the material.
Different from traditional rotary blade cutting that easily causes material stretching and deformation, the oscillating knife discretizes continuous cutting into thousands of micro high-precision impacts. This mechanism greatly reduces cutting resistance, effectively avoiding film stretching, edge warping and layered deformation, while lowering tool wear and material loss.
Equipped with a high-precision CNC intelligent control system, professional material nesting software and industrial CCD visual positioning module, the modern digital oscillating vibration knife cutting machine realizes fully automatic processing from design drawing import to finished product output. It supports one-click operation and unattended continuous production, greatly improving industrial processing intelligence.
Three Core Pain Points of Traditional PET Film Cutting Technology
Before the popularization of intelligent cold cutting equipment, PET film processing mainly relied on three traditional methods: die stamping cutting, laser thermal cutting and manual cutting. All three solutions have obvious technical defects and cannot balance high precision, high quality and high efficiency.
1. Die Stamping Cutting: High Cost & Easy Material Damage
Die cutting requires customized metal molds for each product specification. As a thin and brittle flexible material, PET film is extremely vulnerable to pressure indentation, edge delamination and fracture under high stamping pressure. In addition, customized molds bring high manufacturing costs and long replacement cycles, which cannot adapt to small-batch customization, frequent pattern replacement and rapid proofing production modes.
2. Laser Cutting: Severe Thermal Damage & Performance Loss
Although laser cutting features fast cutting speed, it relies on high-temperature thermal ablation to cut materials. The intense heat will cause PET film edges to curl, blacken and carbonize. For optical-grade PET film, conductive coating film and lithium battery functional film, high temperature will destroy the surface functional coating, reduce light transmittance and insulation performance, and directly lead to unqualified finished products, which is fatal for high-end electronic and photovoltaic applications.
3. Manual Cutting: Low Efficiency & Unqualified Precision
Manual scribing and cutting has the lowest production efficiency with a qualified rate of less than 60%. The cutting edges are severely jagged and uneven, unable to meet the micron-level precision requirements of modern electronic film components, completely failing high-standard industrial production needs.
Five Core Advantages of Oscillating Knife Cold Cutting for PET Film
1. Zero Thermal Damage, Fully Preserve Original Material Performance
The CNC flexible film cutting machine adopts 100% pure physical cold cutting technology with no heat generation during the whole process. It completely solves the common problems of edge carbonization, blackening and thermal deformation caused by laser cutting. For heat-sensitive functional films such as optical PET film, circuit substrate film and new energy battery film, zero high-temperature oxidation can completely retain the original physical, optical and chemical properties of the film material, ensuring stable product performance.

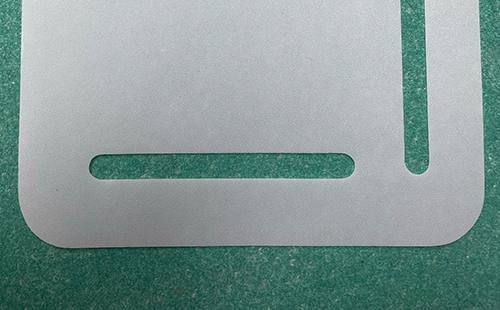

2. Burr-Free Ultra-Smooth Cutting Edges, No Secondary Processing
Combined with high-frequency vibration blades, precision tool setting and adaptive pressure control system, the equipment achieves flat, clean and burr-free cutting edges. The original light transmittance and flatness of PET film are well maintained without manual polishing or deburring procedures. For high-precision industries such as OLED polarizers and flexible circuit base films, the cutting R-angle tolerance can reach ±0.03mm, and the positioning hole precision is up to ±0.02mm, fully meeting strict electronic industry manufacturing standards.
3. Eco-Friendly & Low Energy Consumption, Green Industrial Manufacturing
Compared with laser cutting that produces a large amount of smoke and harmful gas, the digital oscillating knife cutting process generates no smoke, no exhaust gas and no pollution. Its overall energy consumption is only 15% of traditional laser cutting equipment, and the working noise is lower than 75dB. It fully complies with global industrial safety production standards and low-carbon environmental protection requirements, realizing green and sustainable processing.
4. CCD Visual Nesting, Greatly Improve Material Utilization
Equipped with an advanced CCD visual positioning system and automatic intelligent nesting software, the digital flatbed film cutting machine automatically optimizes the layout of cutting pieces. It increases PET film material utilization by nearly 20%, effectively reducing raw material waste. For downstream manufacturing enterprises sensitive to high PET film material costs, it brings substantial long-term cost-saving benefits.
5. No Mold Required, Flexible for Diversified Custom Orders
The intelligent CNC cutting system supports direct cutting of any irregular shapes and complex patterns by importing CAD and AI design files. No mold customization and mold replacement are needed, which greatly shortens product proofing cycle and production lead time. It is perfectly suitable for modern flexible manufacturing modes featuring multiple varieties, small batches and rapid order response.
Conclusion
The CNC digital oscillating knife cold cutting machine thoroughly solves the industry bottlenecks of traditional PET film cutting processes such as burr defects, thermal damage, high mold cost, low precision and low material utilization. With the comprehensive advantages of zero thermal damage, micron-level high precision, burr-free edges, environmental protection and flexible production, it has become the standard processing equipment for high-end PET film in electronics, photovoltaics, new energy and packaging industries.
Whether for mass standardized production or personalized customized proofing, the intelligent oscillating knife cutting solution can stabilize product quality, improve production efficiency and reduce comprehensive production costs, helping film processing enterprises enhance core competitiveness in the high-end precision manufacturing market.
