If you are still using traditional circular saw machines for PVC foam board processing, you must be familiar with various production troubles: harsh high-decibel working noise, flying foam dust filling the workshop, and unappealing burrs and debris on board edges. More importantly, PVC foam board, also known as Forex board or Andy board, features a soft texture and internal microporous structure. Traditional high-speed rotating saw blade cutting generates intense friction heat, which easily causes edge yellowing, material melting and even releases toxic gas. These problems not only damage the appearance and structural integrity of finished products, but also pose serious health hazards to operators and pollute the production environment. Nowadays, upgrading to a professional CNC oscillating knife foam board cutting machine has become the ideal solution to completely solve the pain points of traditional PVC foam board processing.
Why CNC Oscillating Knife Cutting Is More Suitable for PVC Foam Board
PVC foam board has unique material characteristics, with hardness between solid wood and soft foam, excellent toughness and elastic recovery performance, and is widely used in advertising signage, architectural decoration, model making and packaging industries. Traditional circular saw cutting belongs to the material grinding and removing processing mode. The high-speed rotating saw teeth will tear the internal microporous structure of the foam board, bringing four irreparable processing defects:
Rough Cutting Surface: The saw blade tears the board to form jagged and powdery edges, resulting in poor flatness.
Serious Dimensional Deviation: The board is prone to extrusion deformation under the strong cutting force of the saw blade, causing offset cutting lines and unqualified product size.
Severe Dust Pollution: A large number of fine foam particles are suspended in the air, difficult to clean, increasing workshop cleaning costs and environmental pressure.
Thermal Melting Adhesion: High friction heat melts the PVC material, making the board edge adhere to the tool and form sticky burrs, affecting subsequent processing.
Different from the destructive tearing cutting of circular saws, the industrial CNC oscillating knife cutting machine adopts vertical reciprocating high-frequency vibration cold shear cutting principle. It relies on the sharp blade’s high-frequency up-and-down movement to shear the material accurately, rather than grinding and tearing it. This processing method perfectly fits the structural characteristics of PVC foam board, bringing multiple intuitive processing advantages.
Core Advantages of Oscillating Knife Cold Cutting for PVC Foam Board
1. Complete Dust-Free Processing, Clean Workshop Environment
The shear cutting mode produces no fine foam debris or floating dust throughout the whole process. There is no need to configure expensive professional dust removal and vacuum systems, effectively reducing workshop supporting equipment investment and daily cleaning workload, meeting modern factory environmental protection and clean production standards.
2. Zero Thermal Generation, No Yellowing or Melting Deformation
The blade contacts the PVC foam board for an extremely short time during high-frequency vibration cutting, with almost no friction heat accumulation. It completely avoids edge yellowing, melting and warping deformation caused by high temperature, retaining the original flatness and color of the board.
3. Ultra-Smooth Vertical Cutting Edges, No Secondary Trimming
The precision shear cutting forms flat, vertical and dense cutting surfaces without burrs, white edges or tool marks. The finished PVC foam board can be directly used for advertising display stand production, exhibition construction, architectural decoration and other scenarios, eliminating manual polishing and trimming procedures and saving labor costs.
4. Narrow Cutting Kerf & High Material Utilization
The cutting kerf of the precision oscillating knife is only 1-2mm, far narrower than the 3-5mm kerf of traditional saw blades. It can increase the effective utilization area of each PVC foam board by 5%-10%, bringing continuous and substantial material cost savings for mass processing enterprises.
Key Technical Standards for Qualified PVC Foam Board Oscillating Knife Cutter
Not all blade cutting equipment is suitable for PVC foam board processing. Targeting the conventional parameters of PVC foam board (thickness 1-30mm, density 0.45-0.8g/cm³), enterprises must focus on the following core technical indicators when selecting equipment to ensure stable and high-quality processing:
1. High-Quality Blade Material Matching
Priority is given to imported high-carbon steel or cemented carbide blades with high wear resistance and crack resistance. For thick PVC foam boards with a thickness of more than 15mm, special serrated blades are recommended to ensure smooth cutting without tearing or chipping.
2. Reasonable Cutting Speed & Vibration Frequency
The equipment should support an adjustable cutting speed range of 0-20 meters per minute, with a blade oscillation frequency of no less than 1500 times per minute. The matched parameters ensure thin boards are free from tearing and thick boards maintain complete and non-deformed cutting outlines.
3. Reliable Material Pressing & Fixing System
PVC foam board is light and easy to lift by blade vibration force during cutting. Professional equipment is equipped with pneumatic or mechanical pressing devices to firmly fix the board, effectively avoiding size deviation and outline distortion caused by material displacement.
4. Intelligent Automatic Nesting Software
PVC foam boards have high material costs, and manual layout causes serious waste. The digital flatbed CNC cutting machine is equipped with professional intelligent nesting systems, which can automatically optimize the cutting layout like jigsaw puzzles, increasing material utilization by 10%-20% and greatly reducing raw material waste.
Main Industrial Application Scenarios & Industry Benefits
The high-precision and dust-free processing advantages of CNC oscillating knife cutting machines have been widely recognized and applied in multiple industries:
Advertising Signage Industry: It is used for cutting PVC characters, LOGO bottom plates and exhibition background boards. The one-time forming smooth edges without burrs and whitening eliminate secondary polishing, greatly improving the production efficiency of advertising products.

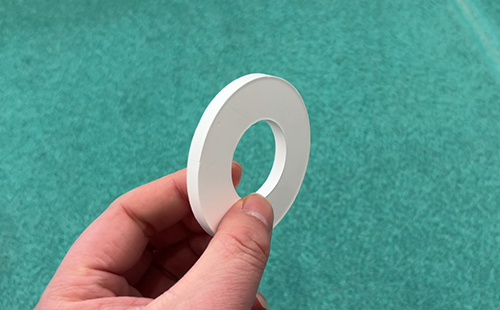

Model Making Industry: Suitable for processing architectural sand tables and product prototypes. The zero-thermal-deformation processing feature ensures high detail restoration, and the equipment can accurately cut small-diameter round holes as low as 10mm, meeting precision model production requirements.
Packaging Buffer Industry: Applied to customized cutting of product buffer liners and support gaskets. The fast pattern switching capability adapts to diversified customized orders, and dust-free processing avoids particle pollution to electronic precision instruments and high-end products.
Equipment Investment Return & Selection Tips
For processing enterprises with a monthly PVC foam board cutting volume of more than 100 pieces or high requirements for finished edge quality, replacing traditional saw blade cutting with a CNC oscillating knife cutting machine has a short investment return cycle of only 3-6 months. The saved material cost, reduced secondary processing labor cost and eliminated dust removal equipment operating cost can fully cover the equipment investment.
When purchasing equipment, it is necessary to require suppliers to provide on-site test cutting samples. High-quality PVC foam board cutting finished products have flat and dense edges without white edges, tool marks, wavy lines and pressure indentations. Unqualified edge texture indicates unqualified blade rigidity or equipment driving structure.
Conclusion
Abandoning traditional dust and burr-prone saw blade cutting technology and adopting advanced CNC oscillating knife cold cutting equipment is an inevitable trend for the upgrading of PVC foam board processing industry. With the core advantages of dust-free and low-noise operation, zero thermal damage, smooth burr-free edges and high material utilization, the intelligent blade cutting machine solves various industry pain points of traditional processing. It is a multi-functional and high-efficiency processing tool for advertising, decoration and packaging enterprises to achieve cost reduction, efficiency improvement and quality upgrading.
