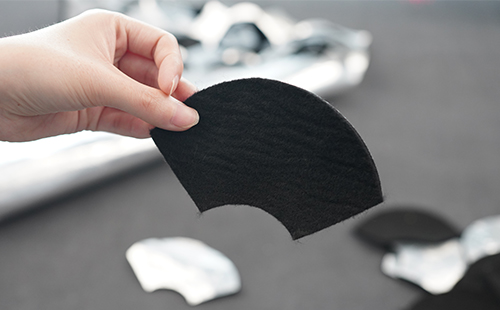

Insulation cotton is an essential flexible material for industrial thermal preservation, equipment noise reduction, building HVAC systems, and automotive interior manufacturing. Common types include EPE insulation cotton, rubber-plastic thermal cotton, fiberglass insulation cotton, rock wool, and aluminum foil composite insulation cotton. Featuring porous structure, high elasticity, loose fiber arrangement and soft texture, these materials are extremely easy to deform under pressure and shed loose fibers during cutting. Traditional processing methods such as manual blade cutting, laser thermal cutting and saw blade cutting always cause common defects including edge fraying, large dimensional deviation, material delamination, massive dust and damaged material performance, seriously affecting finished product quality and production efficiency.
With the upgrading of precision manufacturing standards, professional CNC oscillating vibration knife cutting machines have become mainstream equipment for insulation cotton processing. Adopting high-frequency vibration cold cutting technology and intelligent CNC control system, it completely solves traditional processing pain points, realizing high-precision, dust-free, deformation-free and automated mass production for all kinds of insulation cotton sheets and rolls.
Core Pain Points of Traditional Insulation Cotton Cutting Methods
Most early processing factories relied on manual cutting, laser cutting and saw cutting for insulation cotton production. These methods are poorly adaptable to flexible porous insulation materials, with prominent defects as follows:
1. Manual Cutting — Large Deviation, Deformation & Low Yield Rate
Manual cutting relies on operator experience and fixed templates. The dimensional error is generally more than 2-3mm, making it impossible to process complex special-shaped and hollow structures. During cutting, huge resistance squeezes the fluffy insulation cotton, causing overall material deformation and internal delamination. The rough cutting edges produce massive floating fibers, not only damaging the appearance of finished products, but also weakening the thermal insulation and sealing performance of insulation parts.
2. Laser Cutting — Thermal Damage & Performance Failure
Laser cutting is a typical thermal processing technology. High-temperature ablation burns the edge of insulation cotton, resulting in yellowing, hardening and scorched edges. It destroys the original porous structure, thermal insulation, shock absorption and sound insulation properties of the material. In addition, high-temperature melting produces pungent smoke and harmful dust, causing workshop pollution and failing to meet modern environmental protection production standards.
3. Saw Blade Cutting — Severe Fiber Shedding & Low Efficiency
Saw blade processing adopts friction and tearing cutting mode. The high-speed rotating blade violently pulls and scratches insulation fibers, causing serious edge chipping, fiber shedding and material loss. The processed products require secondary manual trimming and polishing, leading to complicated working procedures, low production efficiency and high material waste, which cannot meet the requirements of modern mass production.
In conclusion, traditional cutting processes can no longer adapt to the precise, standardized and eco-friendly production requirements of insulation cotton. Replacing old equipment with a professional CNC vibration knife insulation cotton cutting machine is an inevitable trend in the thermal insulation material processing industry.
Key Advantages of Vibration Knife Cutting Machine for Insulation Cotton Processing
Our fully automatic oscillating vibration knife cutting machine is specially optimized for foam and flexible fiber thermal insulation materials. Equipped with high-frequency vertical vibration cold cutting technology, high-precision servo control system and intelligent nesting software, it perfectly adapts to the physical characteristics of various insulation cotton and solves all common processing defects.
1. Pure Cold Cutting, Complete Material Performance Protection
The equipment adopts pure physical high-frequency vibration cutting. The blade vibrates thousands of times per minute to cut off fiber structures smoothly without high temperature, friction burning or rigid impact. It avoids scorched edges, hardening and thermal deformation caused by thermal cutting. The original thermal insulation, sound absorption, buffering and waterproof properties of the insulation cotton are fully retained, effectively reducing product scrap rate.
2. Smooth Edge, Zero Fiber Shedding & Zero Delamination
Different from the tearing principle of saw blade cutting, vibration knife cutting features ultra-low cutting resistance and balanced stress. It will not squeeze or pull fluffy insulation cotton materials. Whether for ordinary rubber-plastic insulation cotton or aluminum foil composite insulation cotton, the cutting edges are flat, smooth, burr-free and fray-free. No secondary manual trimming is needed, greatly improving the surface quality and assembly precision of finished insulation parts.
3. Micron-Level Precision, One-Click Forming for Complex Shapes
Driven by industrial CNC system and high-precision servo motors, the cutting accuracy reaches ±0.01mm. It supports mainstream design file formats such as DXF and PLT. It can accurately process regular square, round and strip insulation cotton accessories, as well as special-shaped arc, hollow and irregular insulation gaskets and liners, fully meeting the precision processing needs of automotive, home appliance, mechanical equipment and HVAC engineering industries.
4. Intelligent Nesting, Greatly Reduce Material Loss
Equipped with professional automatic nesting software, the machine optimizes cutting paths and layout arrangements intelligently. Compared with manual typesetting, the material utilization rate is increased by 10%-20%, effectively saving high-cost insulation cotton raw materials. It supports automatic feeding and uninterrupted continuous cutting of roll materials, realizing 24-hour stable automated production. The overall efficiency is 3-5 times higher than traditional manual cutting.
5. Dust-Free & Eco-Friendly Processing, Meet Standard Workshop Requirements
The whole physical cold cutting process produces no smoke, peculiar smell or splashing dust. Matched with a high-power vacuum adsorption table, it firmly fixes lightweight and fluffy insulation cotton to prevent displacement and deformation during high-speed cutting. A small amount of fine fiber debris is absorbed centrally, keeping the workshop clean and fully compliant with environmental protection and safety production standards.
Applicable Materials & Industry Application Scenarios
The vibration knife cutting machine is highly versatile, compatible with 99% of flexible thermal insulation materials on the market without equipment replacement.
Applicable Materials: EVA insulation cotton, XPE/EPE pearl cotton, rubber-plastic thermal insulation cotton, fiberglass insulation cotton, rock wool, aluminum foil composite insulation cotton, flame-retardant foam insulation cotton and other flexible thermal insulation materials.
Application Industries: automotive interior heat and sound insulation accessories, home appliance insulation gaskets, mechanical equipment buffer liners, HVAC pipeline thermal insulation cotton, building sound insulation and thermal insulation panels, new energy equipment flame-retardant insulation parts and other fields.
Manufacturer Advantages of Our Insulation Cotton Cutting Machine
As a professional manufacturer focusing on flexible material CNC cutting equipment, we have completed targeted optimization and iterative upgrades for the fluffy and easily deformed characteristics of insulation cotton, with better adaptability and stability than ordinary cutting equipment:
1. Material-Specific Parameter Optimization
Professionally adjust blade vibration frequency and tool drop pressure to solve industry problems such as material compression deformation, incomplete cutting and fiber shedding from the source.
2. Stable Operation & Low Failure Rate
Adopting thickened industrial machine frame and imported servo accessories, the equipment maintains zero precision deviation during long-term continuous operation, with stable performance and long service life.
3. Zero-Basis Intelligent Operation
Intelligent visual operation system requires no professional programming technology. Ordinary workers can operate skillfully after simple training, greatly reducing enterprise labor and technical costs.
4. One-Stop After-Sales Service
We provide free door-to-door installation, equipment commissioning, technical training and lifelong software upgrade services. Nationwide rapid after-sales response ensures uninterrupted production for customers.
Conclusion
The core difficulties of insulation cotton processing are fiber shedding, edge fraying, structural deformation and low cutting precision. Traditional cutting methods have poor material adaptability, high loss and low finished product quality, which cannot meet modern standardized production requirements. The CNC vibration knife cutting machine thoroughly solves all processing pain points of insulation cotton with the advantages of deformation-free cold cutting, dust-free burr-free cutting, high-precision special-shaped processing and material-saving automation. It is currently the most ideal processing solution for thermal insulation cotton, sound insulation cotton and thermal preservation materials in the industry.
If you need high-quality insulation cotton cutting processing to improve finished product quality, reduce material loss and boost production efficiency, feel free to contact us. We support free sample testing, customized cutting solutions and equipment quotation.
