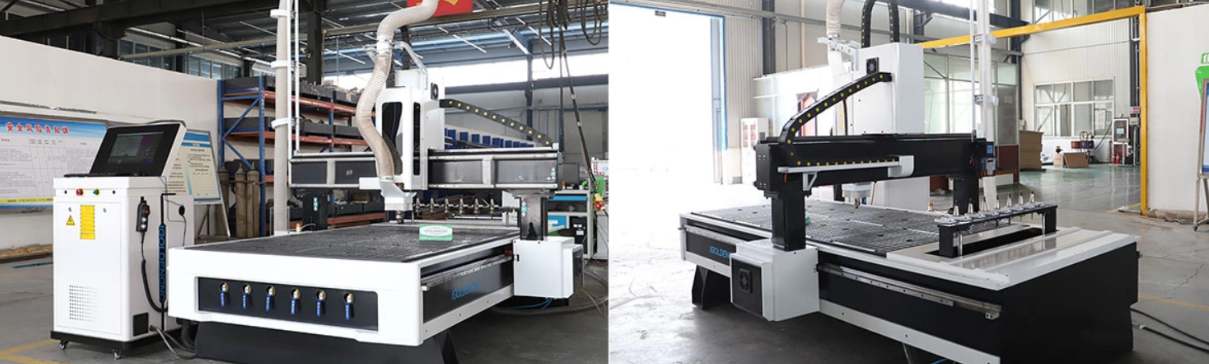

Linear ATC CNC Router with Auto Tool Changer Description:

There are two tool change modes for inline tool change and disc tool change. Widely used, including engraving, milling, chamfering, side milling, drilling, cutting, grooving, etc.

Industrial CNC Router With Auto Tool Changer Features:

• With 8 or 12 sets of tools to change automatically, which can saving time of tools changing and improving working efficiency.

• Vacuum table using high-density material with great suction strength, comfortably accommadating all sizes of work piece.

• NC studio control system is simple, convenient and easy to learn, users can quickly get the fleciblity to master the use of equipment, strong independence.

• The frame adopts the gantry column structure, the machine parts are produced and assembled with extremely high precision to ensure the high performance and stability of the machine, excellent quality and tolerance.

1325 High Efficiency Linear ATC CNC Router For Wood Parameter：

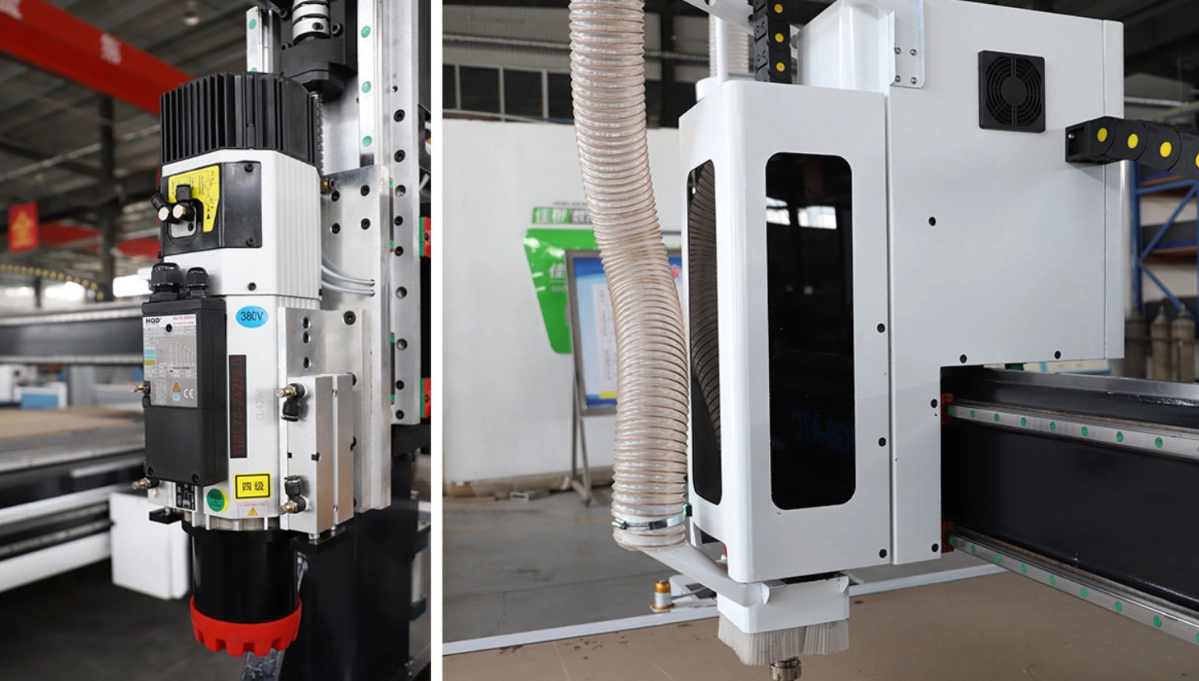

HQD 9KW air-cooled tool change spindle

Vacuum and T slot table with 5.5kw cooling pump

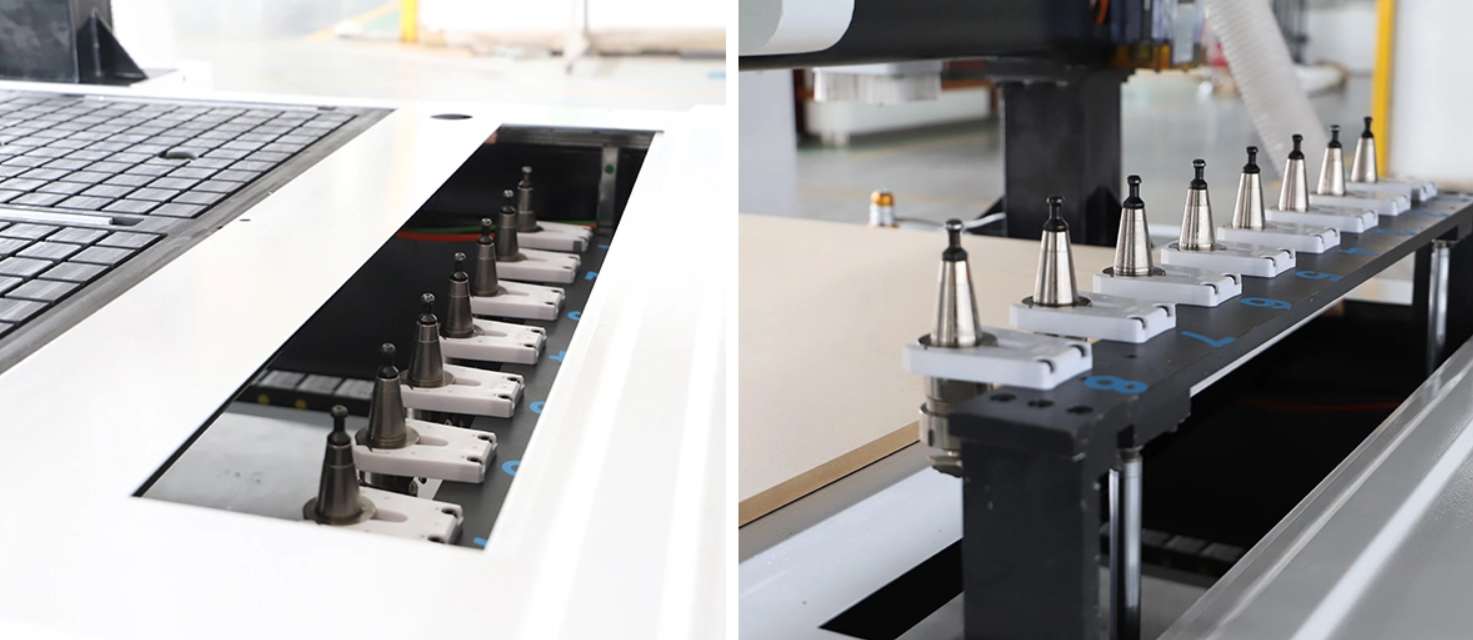

Automatic tool change with liftable tool magazine

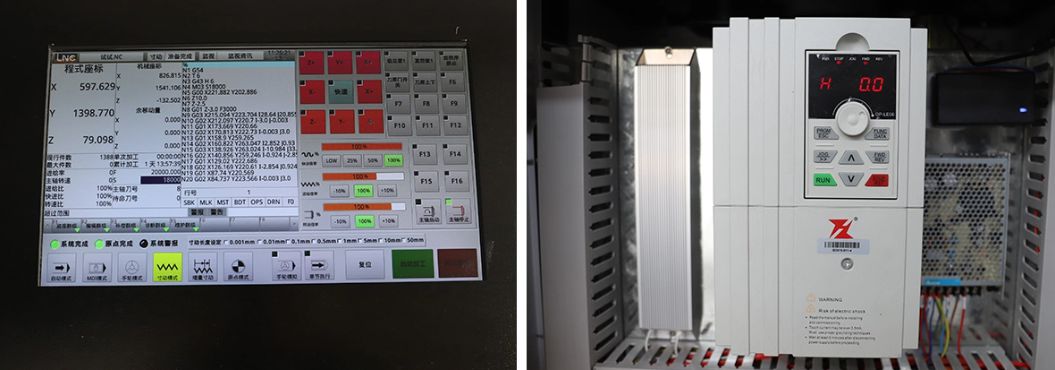

LNC Control System | Fuling Inverter

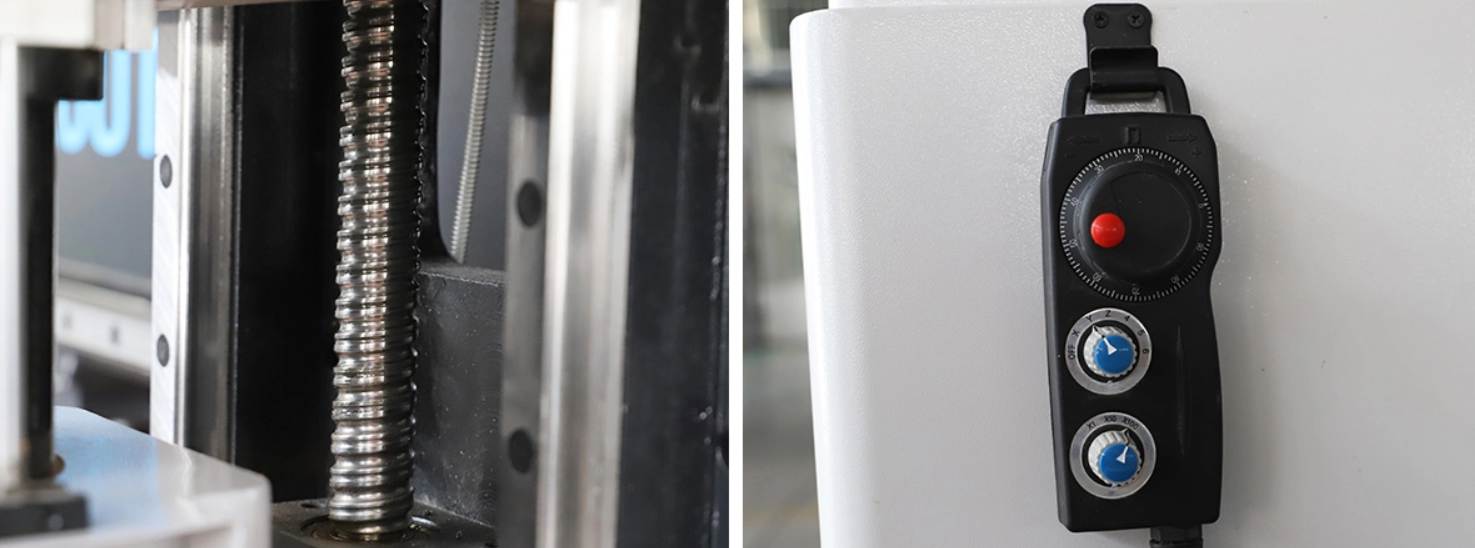

Taiwan ball screw  | Control handwheel

ATC CNC Router Machine With Automatic Tool Changer Advantages:

• Linear type auto tool changer design, good stability performance on tool changing process. There are 8 tool positions; as options, the tool magazine can be built with 10 or 12 positions. Do you like disk type better? If yes, please check on the disk automatic tool changer cnc router.

• Genuine Italy HSD ATC Spindle is adopted, Model. ES929A, 9.0kw, air cooling, 24000RPM. Fit for ISO or HSK tool holders. As an option, you can have a Chinese ATC spindle for cost-saving.

• The combination of the SYNTEC CNC system and Yaskawa pure servo is the real closed-loop control with characters of fast feeding, quiet moving, smooth running, good acceleration and deacceleration, high positioning accuracy. For more details of the servo, please read here.

• The user-friendly fixture design helps a lot in the process of installing the cutters into the tool holder. It's a very nice device for an automatic head changer cnc router. You only need to lock the ISO or HSK tool holder into the fixture and then use a fork wrench to loosen the holder like the picture below shows. Save your time and energy.

• The lubrication system uses an automatic lubrication pump that can be set to achieve the purpose of timely lubrication.

• The safe and smooth operation of the machine is fully taken into the consideration of the design of the circuit part, we have set up multiple guarantees for the circuit, such as parking resistance, overload protection, and fuses.

• A fixed tool sensor is equipped to simplify the Z-axis tool calibration process. It is an essential option for automatic tool changer cnc wood router machines.

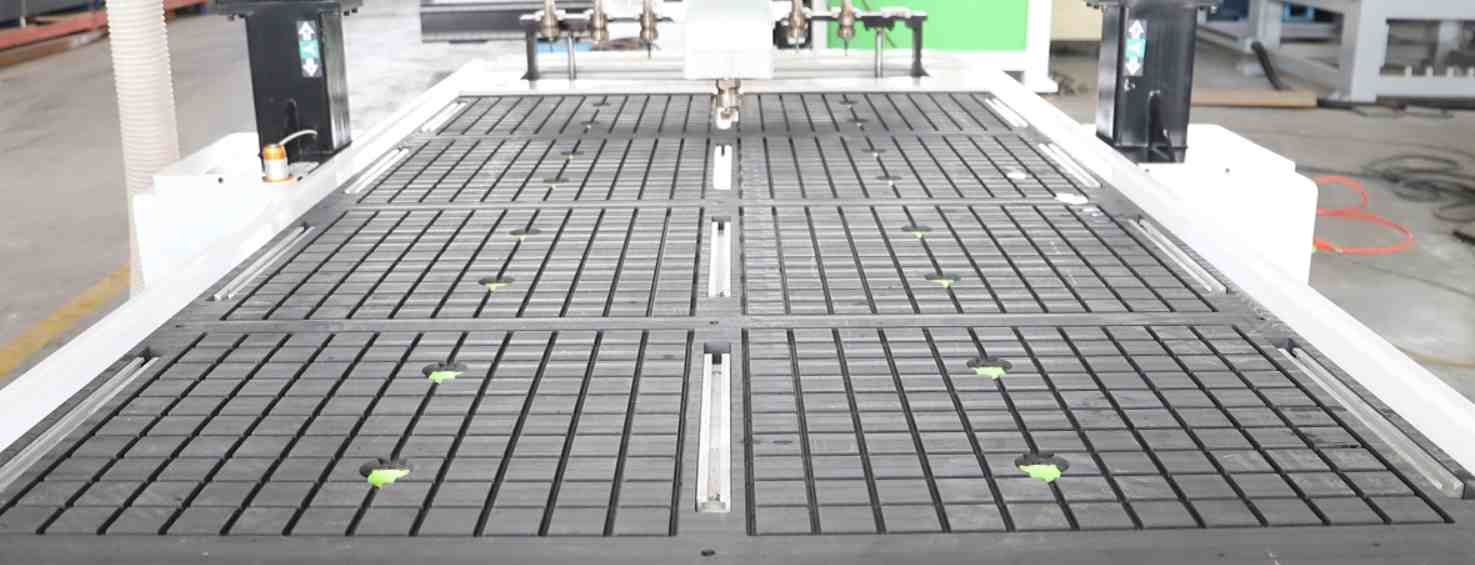

Special T-slot vac-sorb table design increases the clamping capacity by 30% at least.
