Product Description
Multi Heads Woodworking CNC Router Description：
4 Axis multi head CNC router for the mass production industry engineered to process 3D carving and 2.5D relief sculpture engraving operations of solid wood elements.

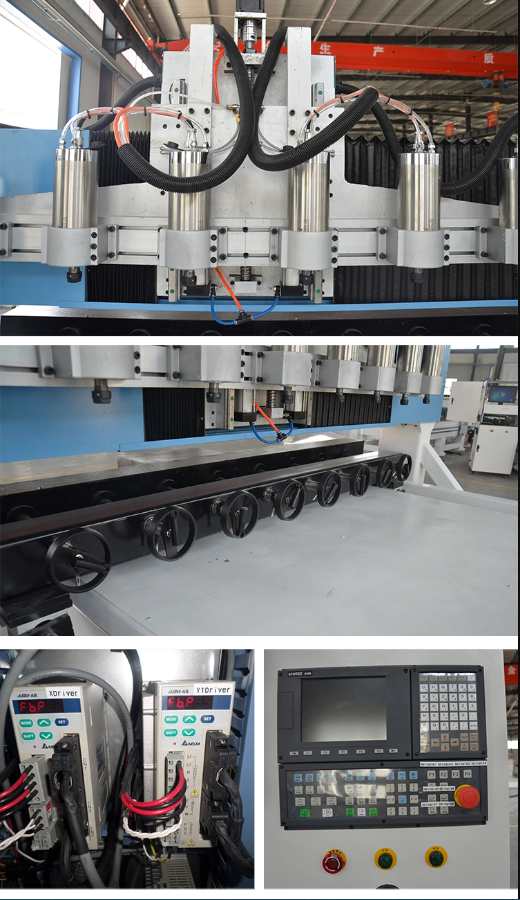

Multi Spindle 4 Axis CNC Router Features:
This 4 axis multi heads cnc wood router with T-type heavy duty body with more solid structure and strong stability because of low center of gravity.
Vacuum table can fix materials of different sizes effectively and reach high speed.
Aiwan imported rolling balls screws, HIWIN square guide rails, high precision, large load bearing and stable running.
Gantry-travelling, sturdy, reliable and stable, non-deforming, high locating accuracy.
Y axis use dual motor drive, select matching to ensure smooth movement.
NK105 control system, with U disk available and not need computer ( can be completely off-line operation.), provides high independence and great convenience for operation.
Unique ability to save several point of origin on several workpieces.
No engraving saw-tooth, smooth undersurface, legible contour, by high-power spindle.
Auto seeking original point system, a good way to improve the working effeciency.
Large compatibility of drawing software, such as Type3, artcam and some other CAD or CAM.
Parameter Configuration Of Multi-Spindle/Multi-Head CNC Router Machine:
2)Spindle + rotary | 8 pcs |
3)-Structure: | Heavy Seamless steel welded |
4)-rotary working size: | 250*1200mm |
5)-XYZ transmission: | XYZ axis Taiwan Ball Screw |
6)-XYZ guide rail: | Famous Taiwan Hiwin Line 25mm Square guide way |
7)-Spindle: | HQD Brand 2.2kw water cooled spindle , 8PCS |
8)-Spindle collet: | Each spindle 3pieces |
9)-Inverter: | Well known china Fuling brand |
10)-Motor: | Servo motor |
11)-Driver: | Servo driver |
12)-Controller system: | Shanghai ncstudio 4 axis /DSP 4 axis/Mach3 |
13)-Voltage: | 220v/380v, 50/60HZ |
14)-Software: | Artcam/ powermill |
15)-Router bits: | 20pcs for free |
16)-Lubrication: | YES |
17)-water pump: | 4 PCS big power |
18)-spanner | Yes |
19)-Packing weight: | 2000KG |
CNC Router 4 Axis Multi Head Applications:
Woodworking: wooden door and furniture, windows, tables and chairs, cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc.
Advertising: billboard, logo,sign,3D characters cutting, acrylic cutting, LED/neon channel, literal-hole cut,lightbox mold, stamp, mould.
Die industry: copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC , etc.
Decoration: acrylic, density board, artificial stone, organic glass, soft metals like luminum and copper, etc.

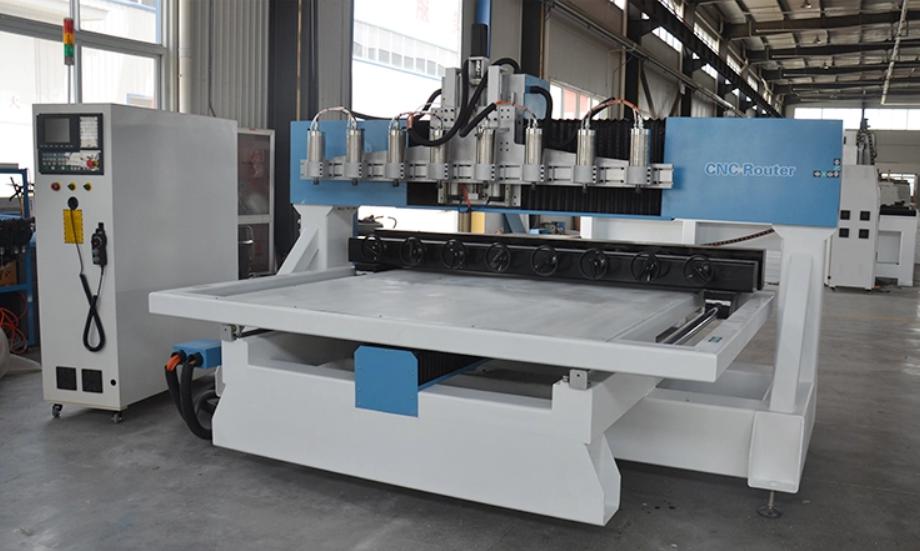

4 Axis Multi -head Cnc Router
The best 4 Multi Heads Woodworking CNC Router is specially designed and developed for the three-dimensional cylindrical batch engraving process. Multi-spindle can be processed at the same time. It is a high-efficiency machine. It is mainly used in furniture manufacturing, gift manufacturing and crafts industries 360 ° carving.
