Product Description
Suitable Materials:
The laser machine can engrave non-metallic materials such as acrylic, two-color board, PVC, wood, density board, leather, paper, cloth, glass, stone, etc.; it can also engrave cylindrical non-metallic materials such as wine bottles, round wood, etc. (a rotating shaft and Lifting platform)
Application Industry:
Application industry of CNC laser cutting machine: The advertising industry, woodworking industry, lighting word engineering, LED advertising characters, furniture manufacturing, craft products, logos, packaging, Architectural models, industrial molds, decoration, clothing, textiles, leather, industrial fabrics, etc.
Working Projects:
Parameter Data:
| Working Area： | 1300*2500mm |
| Dimension： | 3550*1940*1050mm |
| Gross Weight： | 430KG |
| Laser Power： | 60w，80w，100w，130w，150w，180w |
| Working Voltage： | AC 220V±10%，50HZ |
| Control System： | DSP control technology can be connected to a computer or offline USB that can be used. |
| Drive： | Stepper motor High subdivision drive |
| Guide Rail： | Linear guide rail |
| Working Table： | Blade working table |
| Transfer Method： | timing belt drive |
| Laser Typer： | Glass cavity sealed CO2 laser with a wavelength of 10.6μm |
| Laser Tube Cooling： | Water cooling |
| Power regulation： | 0-100% no segment control, software internal 0-100% adjustable |
| Positioning Accuracy： | ≤±0.05mm |
| Engraving Speed： | 0-1200mm/s |
| Cutting Speed： | 0-600mm/s |
| working Environment： | Temperature 0-45°C Humidity 5%-95% (no condensation) |
| Total Power： | ＜3.2KW |
| Software Format： | PLT、DXF、AI、BMP、RLD and AutoCAD、CorelDRAW direct output |
Features of CNC laser cutting machine:
- The laser power is installed independently to avoid high-pressure interference.
- Pure copper gear, corrosion-resistant.
- Fan blower has an independent switch, on and off at any time, reducing noise.
- Laser tube holder special mold, no need to adjust the light.
- The machine is equipped with a leakage and overload protector.
- Mechanical transmission belt drive.
- Data line dedicated square port connection.
- The accessories of the machine are Delixi.
- With anti-fire glass.
- The electrical parts come with an anti-fire box.
- Externally mounted exhaust fan port.

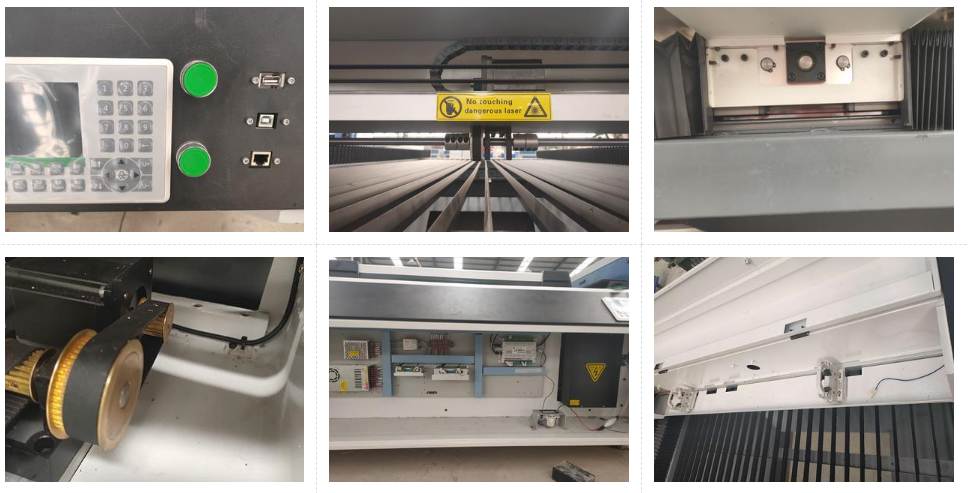

Machine Pictures of Laser Cutter
1325 CNC Laser Cutting Machine with High Speed
Large-format CO2 CNC laser cutting machine with sealed water-cooled laser tube and DSP offline control, realizes fast engraving and cutting of all kinds of non-metallic materials, optional rotary fixture for cylindrical workpiece processing.
