Product Description
Applications of Cheap CNC Milling Machine for Home Use
• The home CNC mill is suitable for engraving, milling and drilling compactly all sorts of materials such as steel, copper, aluminum, and plastics.
• The home CNC milling machine is widely used in automotive, injection mold, ironware mold, and other mould industries.
• The homemade CNC mill is especially designed for engraving and milling molds, eyeglasses, watch, panel, badge, brand, graphics and words of three-dimensional and outside surface's sleeking of large size molds.
• The homemade CNC milling machine is used for iron, copper, aluminum, stainless steel, mould steel, MDF sheets, PMMA, PVC Sheet, ABS sheet, KT board, timber, gemstone, marble, aluminum, and plastic composite panel.
Technical Parameters of Cheap CNC Milling Machine for Home Use
| Model | ST4040F | ST6060F | ST7090F |
| Travel (mm) | 400×400x150 | 600×600x200 | 700x900x200 |
| Input Voltage (v) | AC220V | AC220V | AC220V |
| Max Spindle Speed (rpm) | 24000 | 24000 | 24000 |
| Power of Spindle (kw) | 1.5 | 3.2 | 3.2 |
| Positioning Accuracy (mm) | 0.01 | 0.01 | 0.01 |
| Repositioning Accuracy (mm) | 0.005 | 0.005 | 0.005 |
| Max Milling Speed (mm/min) | 6000 | 6000 | 6000 |
| Tool Collet | ER20 | ER25 | ER25 |
| Driver | Stepper Motor | Servo Motor | Servo Motor |
| Overall Dimensions (mm) | 1600×1200x1680 | 1600×1200x1680 | 1500x1000x1530 |
| Weight (kg) | 1200 | 1400 | 1600 |
| Max Tool Diameter (mm) | 12 | 16 | 12 |
| Max Feeding Height (mm) | 150 | 200 | 200 |
Features of Cheap CNC Milling Machine for Home Use
• The milling machine body is sturdy, rigid, precise, reliable and durable. The all-steel structure is tempered at high temperature, with good rigidity and stability.
• Constant power spindle, high efficiency, suitable for large-scale standardized batch processing.
• Taiwan TBI ball screw transmission, Taiwan square linear rail, can engrave 2mm-3mm small letters.
• The home CNC mill adopts advanced CNC controller (NCstudio or DSP control system), with breakpoint memory mode to ensure that it can continue to work after delays such as electronic power failure.
• Professional high-flexible anti-bending cable, the number of bending times can reach 70,000 times.
• Automatic oiling system, one-button operation, X and Y axis dustproof and waterproof, easy maintenance and operation.
• High-precision ball screw gap, smooth movement, ensure high precision of machine tools.
• Domestic well-known brand water-cooled brushless spindle, low noise, strong cutting ability, ensure long-term work.
• Good three-axis dustproof structure to ensure a longer service life of the machine.
• High-performance drive motor to ensure high speed and precision of the machine.
• The designers carefully crafted and selected the best machine accessories to minimize the failure rate.
• Unique breakpoint memory, power-off resume engraving, processing time prediction and other functions to ensure unexpected processing.

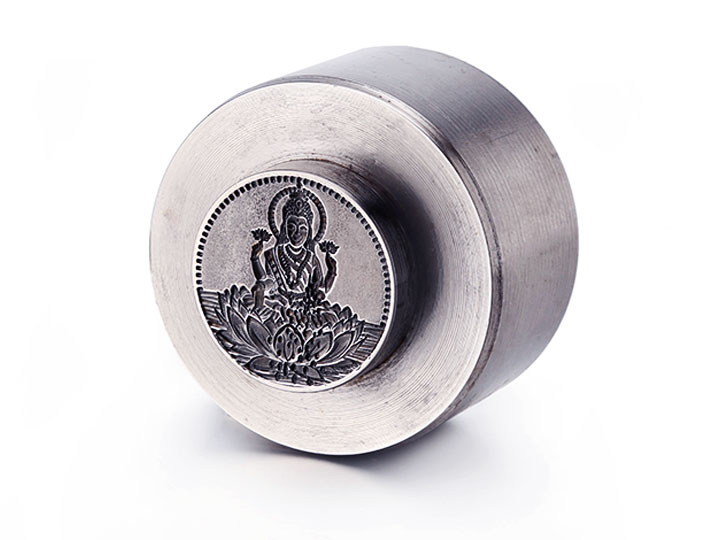

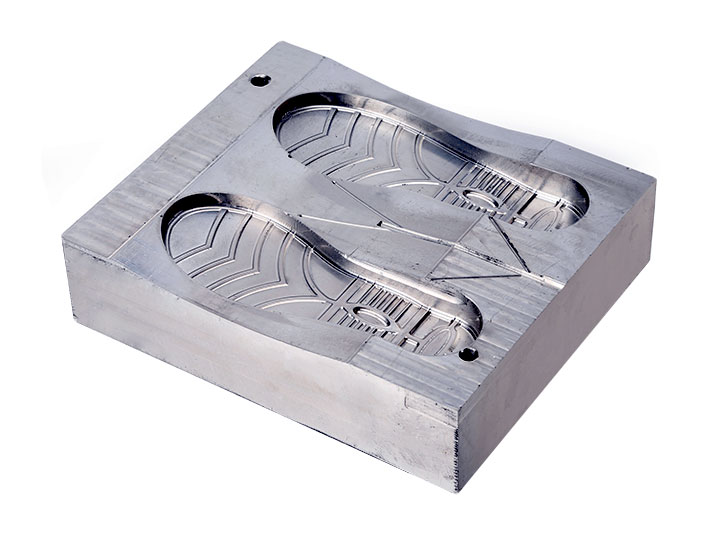

Home CNC Milling Machine Projects
CNC Mill vs. CNC Router: Which One Do You Need?
A CNC mill and a CNC router serve different purposes. CNC mills use heavier frames, lower RPM spindles, and rigid clamping to cut hard metals like steel and iron. CNC routers prioritize speed and larger work areas for wood, acrylic, and composites. If your projects involve mold making or precision metal parts, a dedicated CNC milling machine delivers the rigidity those tasks demand.
| Feature | CNC Mill | CNC Router |
|---|---|---|
| Primary Materials | Steel, iron, aluminum, mold steel | Wood, acrylic, foam, soft metals |
| Frame Rigidity | High (cast iron or welded steel) | Moderate (aluminum/steel gantry) |
| Spindle Speed | Lower RPM, higher torque | Higher RPM, lower torque |
| Typical Accuracy | ±0.01–0.05 mm | ±0.05–0.1 mm |
| Best For | Molds, metal parts, prototypes | Signs, cabinets, engravings |
Essential Tooling and Setup for Home CNC Milling
Getting started with a home CNC mill requires more than the machine itself. Budget for a set of carbide end mills in common diameters (3 mm, 6 mm, and 10 mm), a precision vise, T-slot clamps, and a tool height setter. For mold work and detailed engraving, explore CNC mold making machines with ball screw drives rated for continuous duty. Install the appropriate CNC software (NCStudio, Mach3, or DSP) on a dedicated computer, and always run a dry simulation before cutting metal to verify toolpaths and avoid collisions.
Startup Tooling Checklist:
✓ Carbide end mills (flat and ball-nose, multiple diameters)
✓ Machine vise and T-slot clamping kit.
✓ Tool height setter or electronic probe.
✓ Coolant or mist lubrication system for metal cutting.
✓ Safety glasses, ear protection, and chip guards.
Best Beginner Projects for a Home CNC Mill
Start with low-risk projects to build confidence. Engrave text on aluminum plates, mill simple brackets from 6061 aluminum, or face-mill a practice block to learn work coordinates. As skills grow, take on hobby metal milling projects such as custom watch cases, mold inserts, and precision jigs.
Frequently Asked Questions
Can an affordable CNC mill cut steel?
Yes, with a rigid cast iron frame, carbide end mills, coolant, and shallow passes at reduced feed rates. Machines with low-RPM high-torque spindles handle mild and mold steel reliably.
Do I need CAD/CAM experience to operate a CNC mill?
Not initially. Many controllers support conversational programming for simple jobs. Free CAD/CAM tools like Fusion 360 offer guided tutorials that help beginners create toolpaths within hours.
How much space does a home CNC mill require?
Plan for a sturdy bench of at least 800 x 600 mm with clearance on three sides for material loading, chip cleanup, and controller access behind the machine.
What accuracy can I expect from a budget CNC mill?
Ball screw-equipped mills typically achieve ±0.01 to ±0.05 mm positioning accuracy. Real-world precision depends on frame rigidity, spindle runout, proper tramming, and secure workholding.
How loud is a CNC mill in a home garage?
Milling aluminum produces roughly 75 to 85 dB; steel cutting is louder. An enclosure with sound-dampening panels and consistent use of hearing protection keep noise manageable for residential settings.
Desktop vs. benchtop CNC mill: what is the difference?
Desktop mills weigh under 50 kg and suit soft metals and plastics. Benchtop mills exceed 100 kg, use cast iron frames, and handle harder metals like mild steel with greater rigidity.
How do I maintain a home CNC milling machine?
Clear chips after each session and oil the linear guides. Monthly, check spindle runout, verify backlash, and inspect cables. Replace worn end mills before surface finish degrades.
