Small Desktop CNC Milling Machine Features

• The X, Y, and Z axes use linear guides (Taiwan TBI ball screw drive), which have high precision, stable performance, and strong load-bearing capacity.

• The high-power spindle is used, which is a good choice when processing small molds and the machining center is not good at it.

• The high-subdivision drive is used, which has fast speed and high precision.

• The worktable moving structure is cast iron, with strong stability and great support.

• Compatible with a variety of CAD/CAM software, such as Type3, ArtCAM, and Wentai.

• The CNC controller is simple and convenient to operate, allowing users to quickly become familiar with the operation of the machine.

Small Desktop CNC Milling Machine Configurations

• CE certification.

• Working area:600*600*200mm.

• 2.2kw water-cooling spindle.

• 20 Hiwin Rails.

• Taiwan TBI ballscrew.

• Leadshine Stepper motor.

• Leadshine driver.

• Fuling inverter.

• DSP controller.

• Tool sensor (Auto tool zero calibration for Z axis).

• Cast iron structure.

• All the necessary parts for machine use (different size collets).

Desktop Small CNC Mill Applications

Applied Industries

Metal molds, bronze, embossed mold, wooden mold, three-dimensional model making, and jewellery industry.

Applied Materials

Various types of mold and model processing on man-made stone, copper, aluminum, iron, plastic, and wood.

Small Desktop CNC Mill Technical Parameters

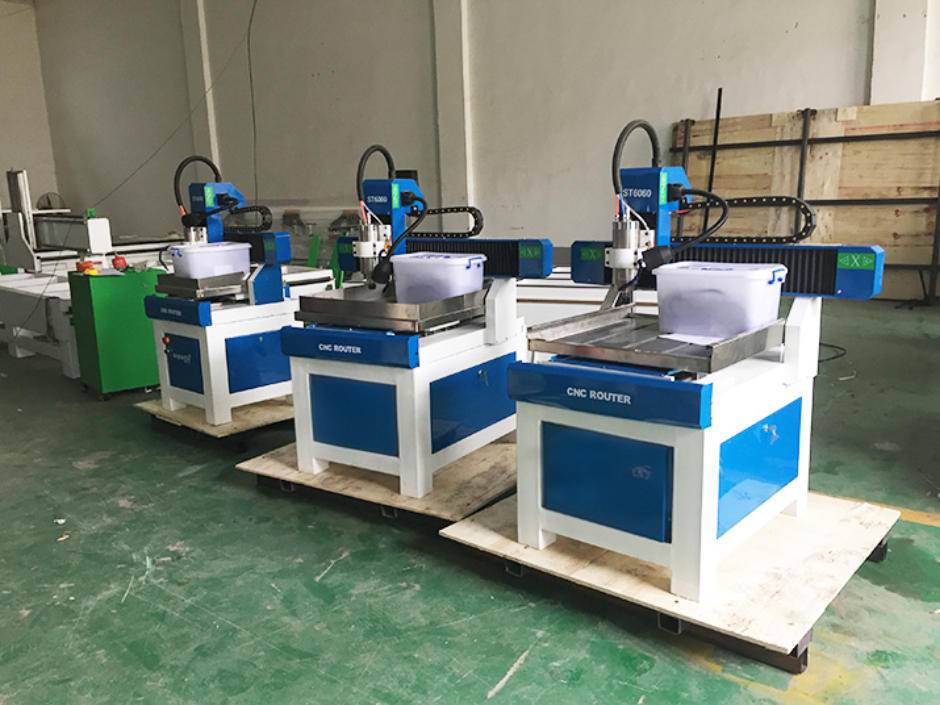

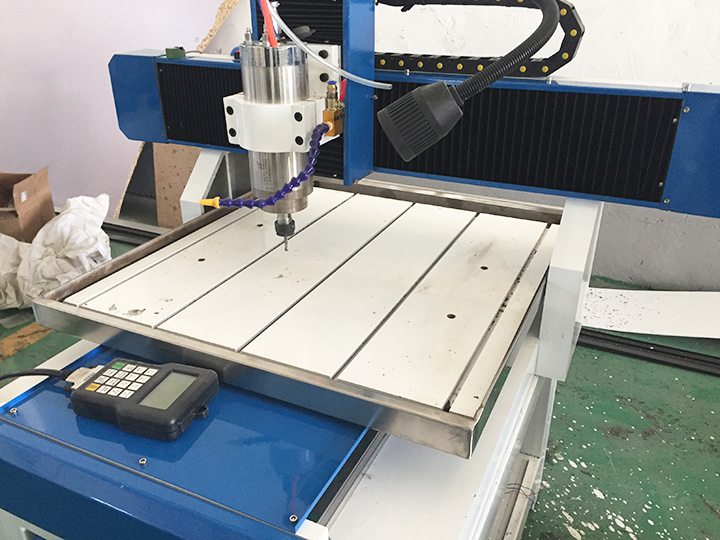

Desktop Small CNC Milling Machine Details

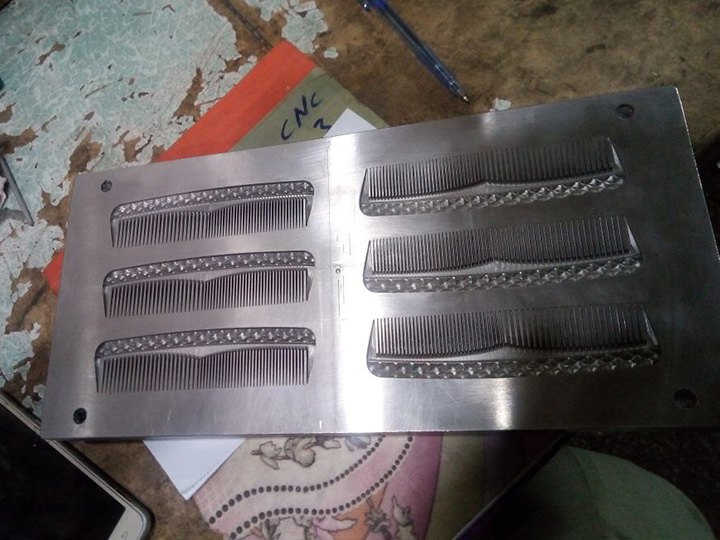

Desktop Small CNC Milling Machine Projects
