What is CNC Vacuum Table?

The CNC vacuum table is a workbench composed of bakelite boards with 6, 8, or 24 sections, which uses a vacuum pump to ensure the suction strength and the stability of the workpiece on the table to ensure that the workpiece will not vibrate and shake during the work of the CNC router machine.

How Does CNC Vacuum Table Work?

The vacuum table is connected to the bottom of the CNC router machine by a vacuum pump through a pipeline. There are many suction holes on the vacuum table. When we put the workpiece on it, the workpiece will be firmly adsorbed by the negative pressure generated by the vacuum pump. The machine starts to work at this time on the table, and the entire loading and unloading process does not exceed ten seconds with high efficiency and speed. It is very suitable for making wood doors and cabinet furniture.

The suction holes on the CNC vacuum table will automatically close when there is a large amount of air intake, thereby avoiding increasing the load of the vacuum system in order to ensure the vacuum suction effect, and avoiding strong airflow between the vacuum table and the workpiece.

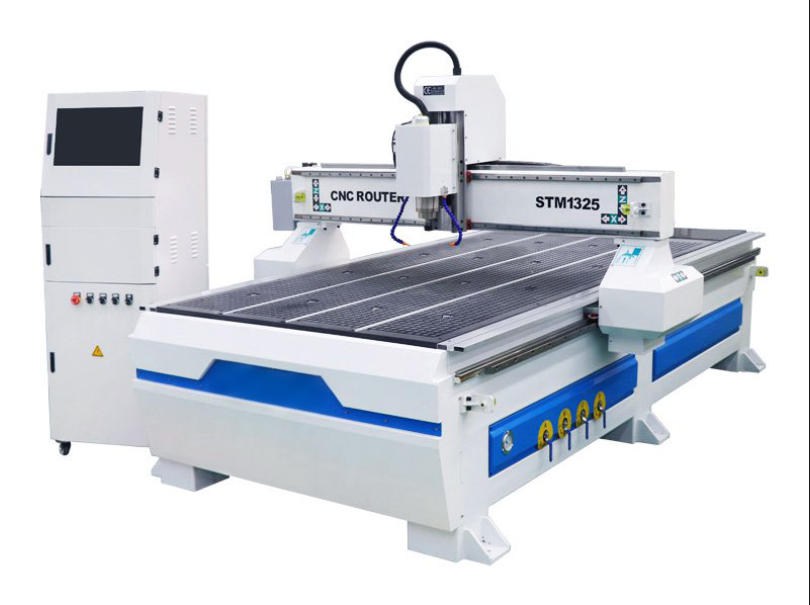

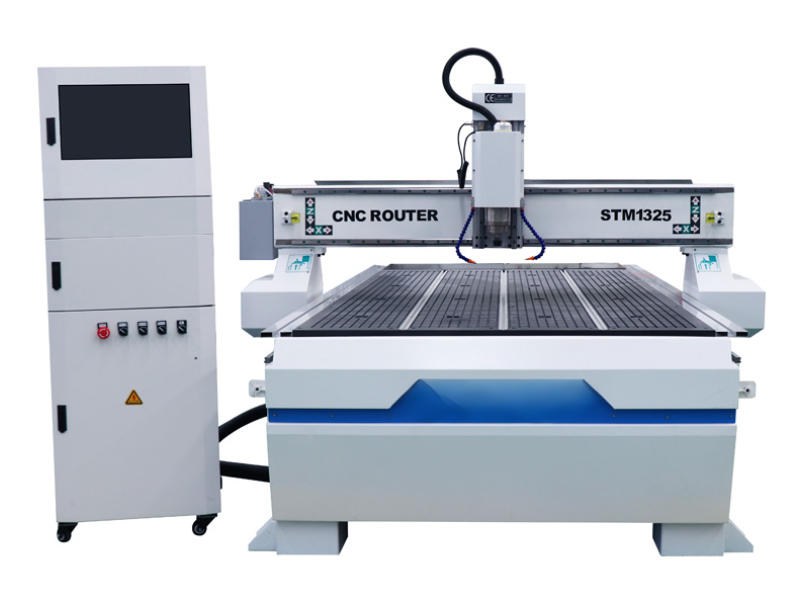

Features of Affordable CNC Router Machine with 4x8 Vacuum Table

1. The machine bed features a high-strength welded steel tube structure, effectively preventing deformation.

2. High-precision Hiwin linear guide rails ensure that the CNC engraving machine's gantry operates with superior stability and durability.

3. Equipped with high-precision ball screws from TBI (Taiwan), further enhancing the machining accuracy of the gantry.

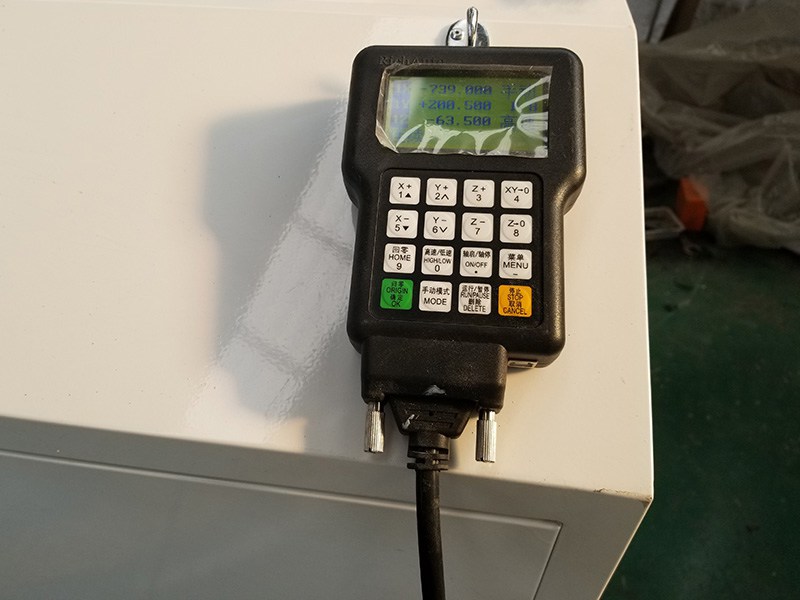

4. Utilizes a DSP handheld controller, which does not consume computer resources, allowing a single computer to control multiple machines simultaneously.

5. Compatible with various mainstream CAD/CAM software packages, including Type3, Artcam, Casmate, and Artcut.

6. Features a vacuum adsorption table that automatically secures workpieces via a vacuum pump, eliminating the need for additional material clamping.

Applications of Affordable CNC Router Machine with 4x8 Vacuum Table

Advertising industry: Business logos and signs, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, fine jewelry carving, furniture and other decoration.

Woodworking: Redwood classical and antique furniture, wood carving, gifts wooden box, redwood jewelry boxes, ink-stone cutting, decorative products sculpture.

Other industries: The CNC router table is also used in portraits, landscapes, calligraphy lettering, basso-relieve, seal carving and other plane surface carving.

Technical Parameters of Affordable CNC Router Machine with 4x8 Vacuum Table

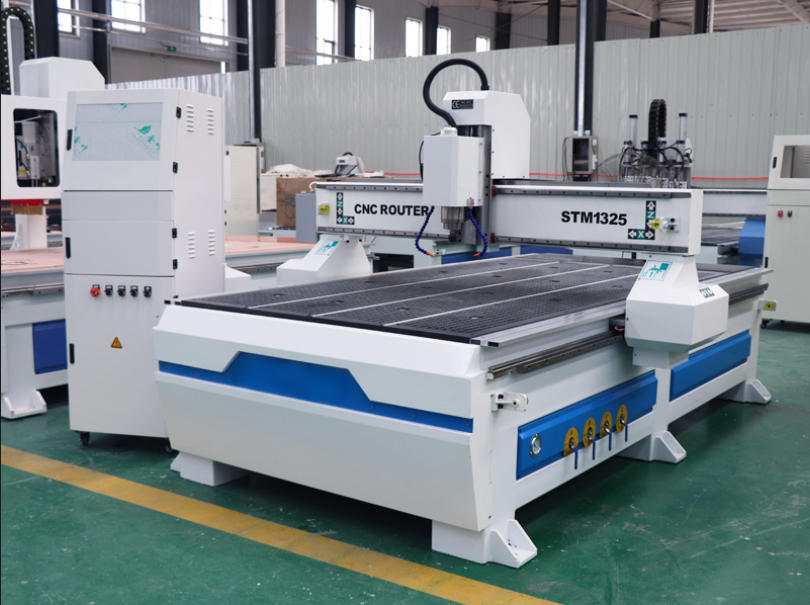

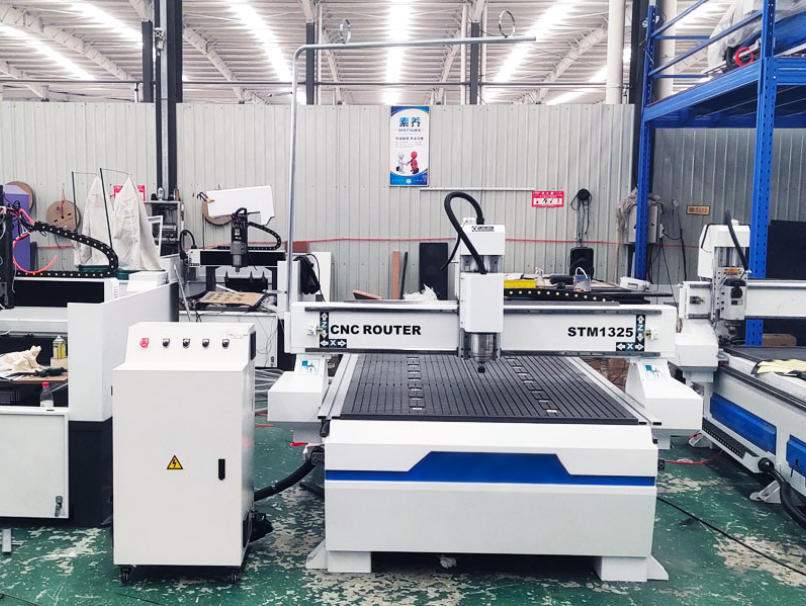

Affordable 4x8 CNC Router Table Details
