Product Description

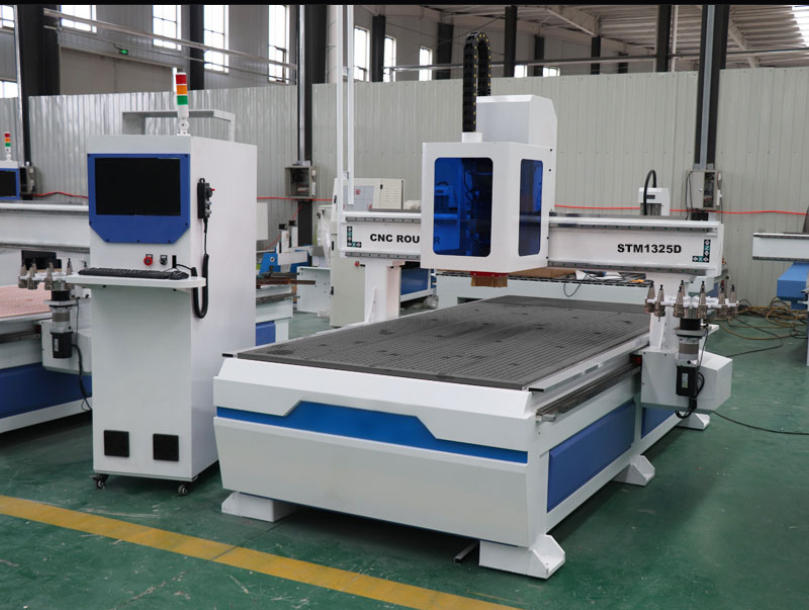

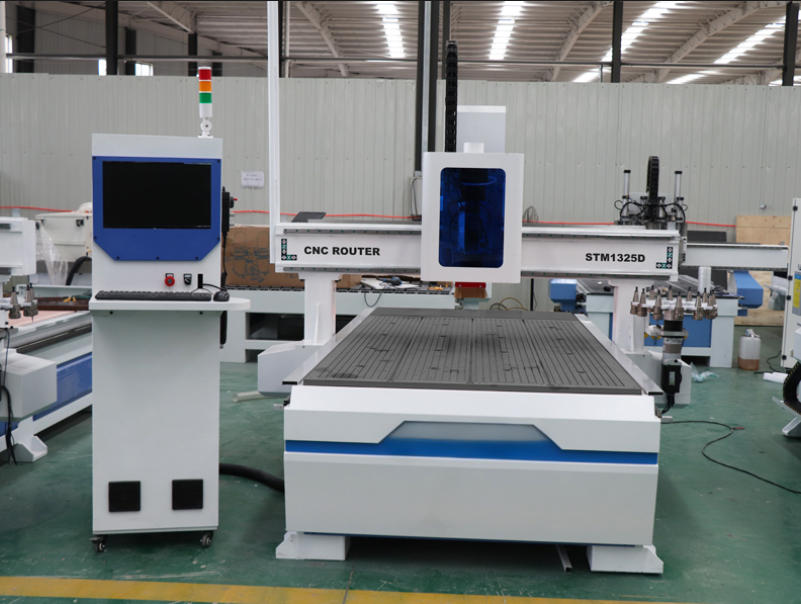

What is an Automatic 4x8 CNC Machine with Tool Changer?
An automatic 4x8 CNC machine with tool changer refers to a computer-controlled router with ATC spindle kit, featuring a full-size working area of 4 feet by 8 feet (approximately 1.2 by 2.4 meters).
4x8 ATC CNC router is a smart CNC machine that can automatically change cutting tools such as drill bits, milling cutters, and end mills without manual intervention, allowing for reduced labor costs, increased production efficiency, shorter production cycles, and improved accuracy in industrial woodworking.
Applications of Automatic 4x8 CNC Machine with Tool Changer for Woodworking
The 4x8 CNC machine with automatic tool changer can perform a variety of operations, including cutting, carving, milling, routing, drilling, and tapping, making them a versatile tool for a wide range of applications.
Furniture Making
Indoor and office furniture manufacturing, including cabinet doors, interior doors, entrance doors, craft window sashes, tables, and chairs.
Decorations
Wall decorations, screens, signs, three-dimensional corrugated boards, bookshelves, bookcases, wall cabinets, sound-absorbing panels, and musical instruments.
In addition, with special tools, the STM1325D can also create molds by cutting and milling soft metals such as copper and aluminum.
Technical Parameters of Automatic 4x8 CNC Machine with Tool Changer for Woodworking
| Model | STM1325D |
| Table Size | 4' x 8' |
| Working Area | 1300x2500x200mm |
| CNC Controller | LNC Control System |
| Spindle | 9.0KW HQD Air-Cooling Spindle |
| Resolution | 0.01mm |
| Lathe Structure | Seamless Welded Steel Structure |
| X/Y Structure | Rack and Pinion, Gear Drive, Taiwan Hiwin 30 Square Guide Rails |
| Z Structure | Taiwan TBI Ball Screw, Taiwan Hiwin 30 Square Guide Rails |
| Max. Idling Speed | 60m/min |
| Spindle Speed | 0-24000r/min, Variable Speed |
| Working Voltage | AC380V/50Hz |
| Motor and Driver | Leadshine |
| Working Mode | Servo |
| Command | G-Code (HPGL, U00, mmg, plt) |
| Tool Diameter | φ3.175 - φ12.7 |
| Cooling Mode | Air-Cooling |
| Dust Collection | Yes |
| Work Holding | Suction or Clamp |
| Tool Magazine | Rotary Automatic Tool Changer with 12 Tools |
Automatic 4x8 CNC Woodworking Machine with Tool Changer Details

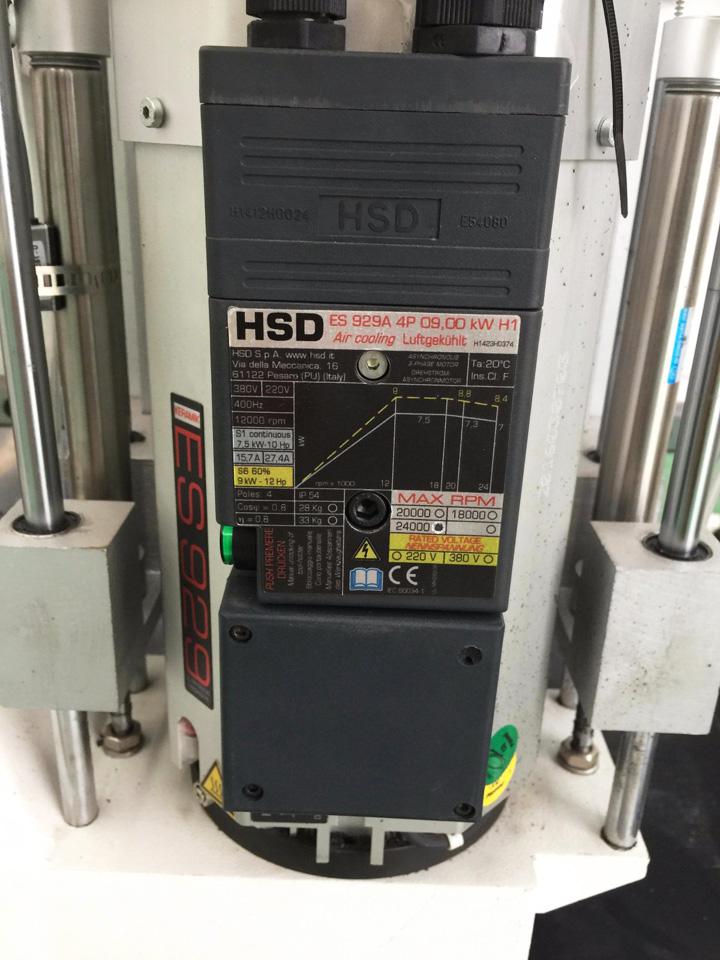

Automatic tool changer spindle kit.

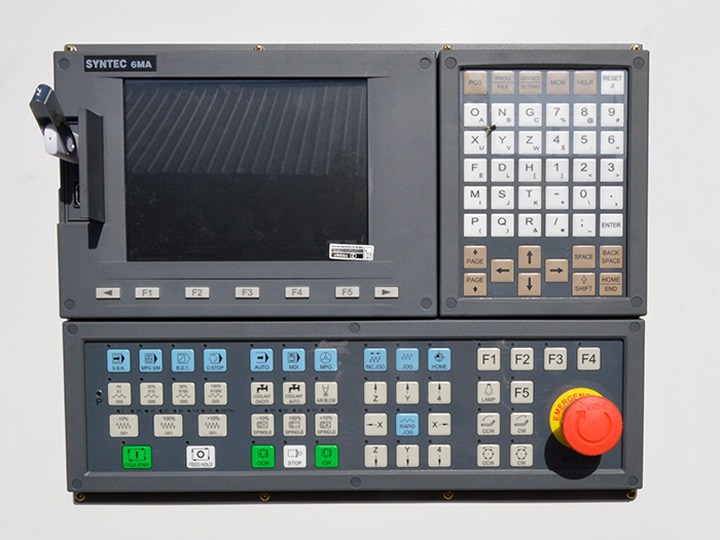

Taiwan Syntec CNC controller.

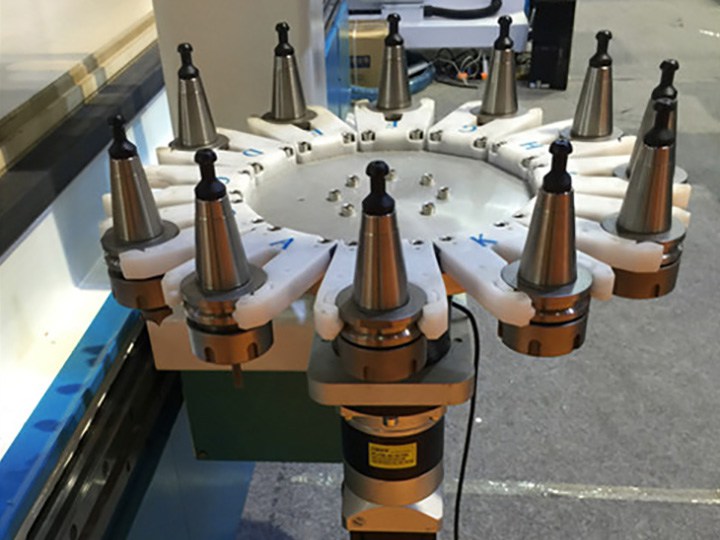

Carousel automatic tool changer with 12 tools.

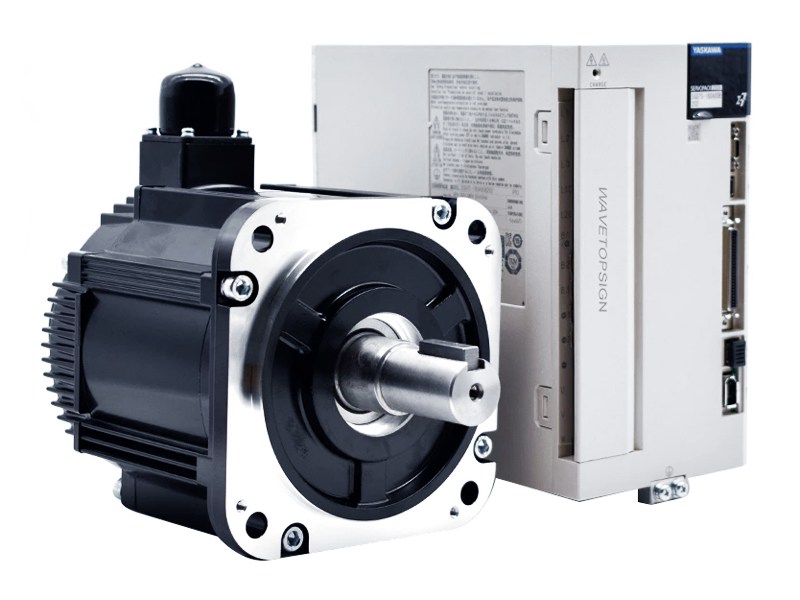

Yaskawa servo motor.
