Product Description
The stone engraving machine is a high-tech automatic CNC engraving machine capable of engraving on natural stone, glass, ceramics, and ceramic tiles. The Marble Engraving machine can meet the requirements of personalized home improvement, industrial art design. The Marble CNC Router can be widely used in the decoration industry, handicraft industry, stone industry, inscription industry, ceramic industry, etc.
Application
Stone industry: marble, granite, tombstone, and other sculptures;
Decoration industry: screen, wave board, large wall hanging, advertising board, logo production;
Crafts industry: Engrave patterns and text on artificial stone, wood, bamboo, organic board, two-color board, and other materials.
Suitable Materials:
Marble, granite, jade, bluestone, black stone, and other stone materials, as well as ceramics, glass, plexiglass, PVC board, aluminum-plastic board, bamboo, and other materials.
Hardstone such as granite can be carved to 5mm in layers
Marble, bluestone, etc. can be engraved to 5mm at a time
Parameter Data
| X, Y-Axis Travel | 1300X3000mm(4X10ft), 1300*2500mm(4*8ft), 1500X3000mm(5X10ft), 2000X3000mm. 2000X4000mm. |
| Z-Axis Travel | 300mm,400mm, 500mm,600mm. |
| Spindle Power | 5.5KW Marble engraving spindle with 24000RPM. ER25 |
| Drive System X, Y and Z axis | German Helical Rack and Pinion for X and Y-axis. And Z-axis with TBI ball screw |
| Transmission X, Y and Z axis | HIWIN/THK Rail Linear guide and bearings. |
| Motor for X, Y, and Z | Stepper motor / AC Servo motor |
| Machine Structure | Thicken weld steel tube machine body. Rigid cast steel gantry and side support and table, water tank |
| Working Voltage | 220V/50HZ/60HZ,3PH or 380V/50HZ/60HZ,3PH |
| Command Language | G Code & M Code |
| Operating System | DSP Handheld Controller/ NC studio/Mach3/SYNTEC controller/SIEMENS |
| Collet | ER25, φ4, φ6,1/8, 1/2 |
| Lubrication | Automatic lubrication system |
| Tool Calibration | Automatic tool sensor |
| Max. Rapid Travel Speed | 40000mm/min |
| Max. working Speed | 25000/min |
| Repeatability | +/-0.04mm/300mm |
| Working Accuracy | +/-0.03mm/300mm |
| Machining Function | 2D Machining, 2.5D Machining, 3D Machining |
| Compatible Software | Type3, Ucancam, Artcam, etc. |
| Other Names | marble engraving machine, marble carving machine, marble router machine, CNC marble engraving machine, granite marble cutting machines, marble stone cutting machine, marble engraving tools |
| Suitable Materials &Applications | Marble, bluestone, jade crystal, agate, glass, plastic cement, ceramic, stainless steel, titanium, copper, iron, aluminum, bamboo, and other hardwood surfaces of virtue and sculpture. |
| Gross Weight | 2000 KGS |
| Package Size | 3900*2250*1950mm |
Machine Pictures

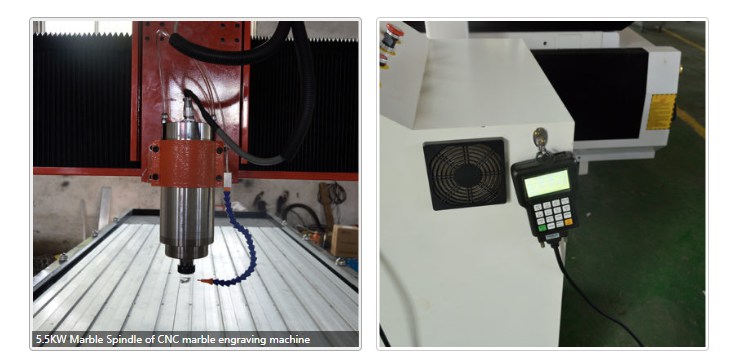

- Professional 5.5KW spindle for Marble CNC Router. 24000RPM, ER25
- DSP controller, Smart and simple to operate, and easy to learn.
- Water tank for marble engraving machine

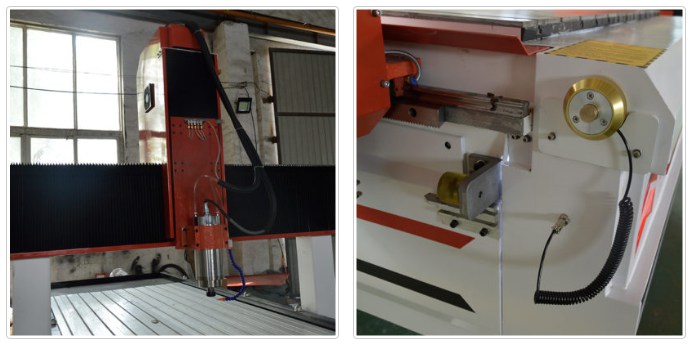

- Automatic tool calibration, A Tool Touch Off( TTO) (Tool sensor or tool calibration) measures with a single button press and simplifies setup
- Dust Cover for X and Z axis to protect ball screw and square linear Guide
- The lubrication system delivers the perfect amount of grease to make sure the machine be lubricated timely and works perfectly. Prolong the working life of the CNC Router Machine.
Projects by Marble Engraving Machine
CNC Marble Engraving Machine
Heavy-duty 3-axis CNC stone router with water tank table and 5.5KW water-cooled spindle, supports stone lettering, relief, hollowing and cutting, works on marble, granite, jade, ceramic and soft composite materials.
