Product Description
Description of Multi-spindle Marble Engraving Machine
The Multi-spindle stone CNC router can process materials of different sizes, specially designed for various stone processing, such as marble, granite, sandstone, jade, quartz, etc. The CNC stone engraving machine adopts dual independent spindles, which can carry out engraving, cutting, milling, and other processes to meet the requirements of personalized home decoration and tooling art design. The rotary saw can realize high-speed cutting of stone and improve work efficiency.
CNC Stone Router Machine Configuration
- The working area of X, Y, Z:1300*2500*200mm
- Rotate cutting saw
- 5.5kw marble working spindle
- YAKO 2811 driver with strong power
- T slot PVC table with a water tank
- Dust cover to promise clean of the guide and rack
- Double work head suitable for cutting and engraving on different materials
- DHTN PC Controller system
- 380V/220V,3phase,50HZ
- Drive System: X and Y axis: Helical Rack and Pinion, Z-axis: TBI ball Screw
- Manual Lubrication system
- Schneider Electric Components
- Japan OMRON limit switch
Application of Multi-spindle Stone CNC Router
The CNC stone engraving machine can process almost all stones, so as long as it is an industry involving stone, our CNC stone engraving machine can be used.
Stone industry: carving and processing stone, jade, marble, granite, quartz stone, artificial stone, and other stones.
Furniture industry: countertops, bar counters, floor tiles, marble cabinets, stone furniture.
Decoration industry: stone gift boxes, stone crafts, stone decorations, sculptures, 3D stone crafts, etc.
Stone tablet processing industry: stone tablet making, sarcophagus, tombstone, etc.
Advertising industry: stone advertising, artistic relief, signs, badges, etc.
Ceramic industry: all-stone ceramics, ceramic bottles, and other handicrafts.
Suitable Materials of Stone CNC Router with Rotary Saw Cutting Head
- Wood: Plywood, Soft Wood, Hard Wood, MDF, Chipboard
- Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE
- Soft Metal: Aluminium, Brass, Copper, Mild Steel
- Composite: Aluminium Composite, Copper Composite, Titanium Composite, Zinc Composite.
- Stone: Suitable for all kinds of marble, granite, ceramic tiles, European-style stone decoration, tombstones, monuments, milestones, murals, railings, stone reliefs, etc.
Parameter Data of Multi-spindle CNC Marble Engraving Machine
| Model Name | hcFS1325M |
| X, Y-Axis Travel | 1300*2500mm(4*8ft), Optional: 1300X3000mm(4X10ft), 1500X3000mm(5X10ft), 2000X3000mm. 2000X4000mm. |
| Z-Axis Travel | 200, Optional: 300mm,400mm, 500mm,600mm. |
| Spindle Power | 5.5KW Marble engraving spindle with 24000RPM. ER25 |
| Drive System X, Y, and Z-axis | German Helical Rack and Pinion for X and Y-axis. And Z-axis with TBI ball screw |
| Transmission X, Y, and Z-axis | HIWIN/THK Rail Linear guide and bearings. |
| Motor for X, Y, and Z | Stepper motor / AC Servo motor |
| Machine Structure | Thicken weld steel tube machine body. Rigid cast steel gantry and side support and table, water tank |
| Working Voltage | 220V/50HZ/60HZ,3PH or 380V/50HZ/60HZ,3PH |
| Command Language | G Code & M Code |
| Operating System | DHTN PC Controller system |
| Collet | ER25, φ4, φ6,1/8, 1/2 |
| Lubrication | Automatic lubrication system |
| Tool Calibration | Automatic tool sensor |
| Max. Rapid Travel Speed | 40000mm/min |
| Max. working Speed | 25000/min |
| Repeatability | +/-0.04mm/300mm |
| Working Accuracy | +/-0.03mm/300mm |
| Machining Function | 2D Machining, 2.5D Machining, 3D Machining |
| Compatible Software | Type3, Ucancam, Artcam, etc. |
| Other Names | marble engraving machine, marble carving machine, marble router machine, CNC marble engraving machine, granite marble cutting machines, marble stone cutting machine, marble engraving tools, CNC stone router machine |
| Suitable Materials &Applications | Marble, bluestone, jade crystal, agate, glass, plastic cement, ceramic, stainless steel, titanium, copper, iron, aluminum, bamboo, and other hardwood surfaces of virtue and sculpture. |
| Gross Weight | 2000 KGS |
| Package Size | 3900*2250*1950mm |

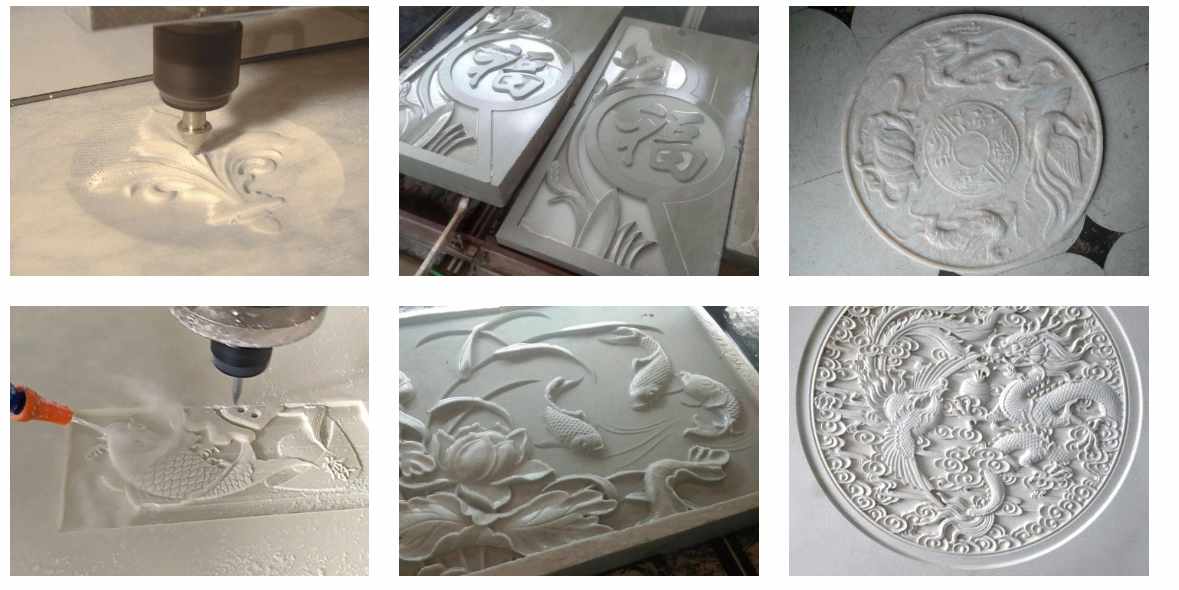

Projects by CNC Marble Engraving Machine
High-Speed Multi-spindle Stone CNC Router with Rotary Saw Cutting Head
High-speed dual-head stone CNC router equipped with rotary saw cutting head and engraving spindle, integrates cutting, milling and engraving functions, processes marble, granite, jade, wood, soft metal to realize 2D and 3D stone artwork machining.
