Product Description

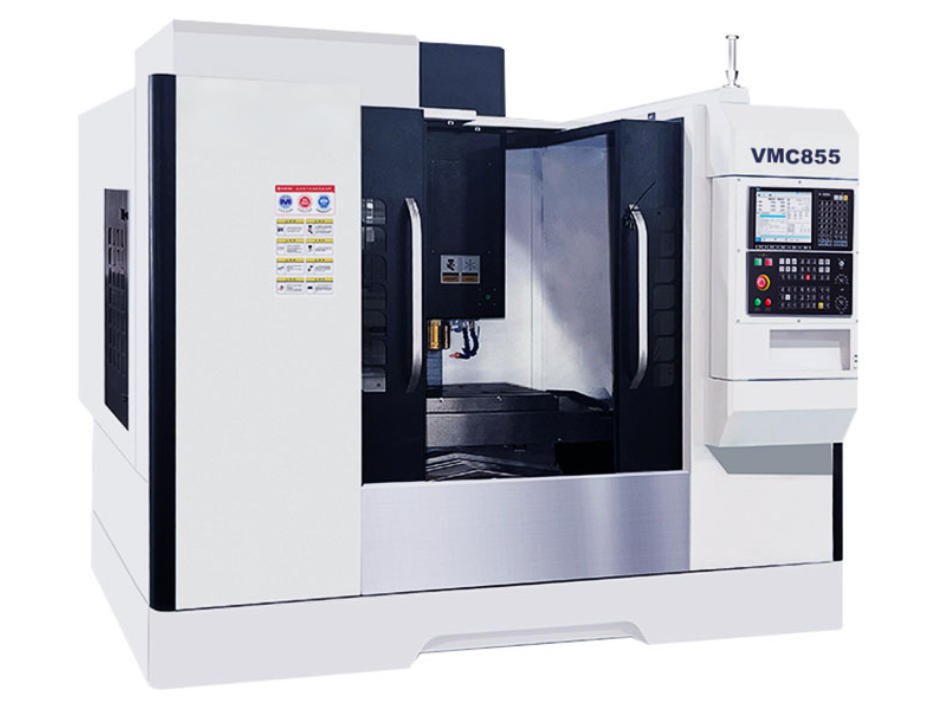

The VMC855 CNC vertical machining center (VMC) is equipped with a spindle axis set perpendicular to the worktable, making it easy to handle precision 2D sheet metal parts and complex 3D housing-shaped parts, as well as intricate metal molds.
The VMC855 vertical CNC machining center works with a variety of capabilities, including milling, boring, drilling, tapping, and threading.
The VMC855 CNC vertical machining center requires at least three axes with two-axis linkage to function properly, and typically works with three axes with three-axis linkage, while some high-end models require a fourth or fifth axis for 3D machining.
The VMC855 vertical CNC machining center comes with X, Y, and Z axes as standard. 4th-axis and 5th-axis are optional for multi-angle and multi-directional machining. The VMC855 utilizes a CNC controller for automated metal fabrication, featuring a compact structure, high speed and high precision, making it ideal for manufacturing a wide range of metal parts and molds. The VMC855 is small yet full-featured, offering a perfect balance of speed and power to significantly boost your productivity.
Features

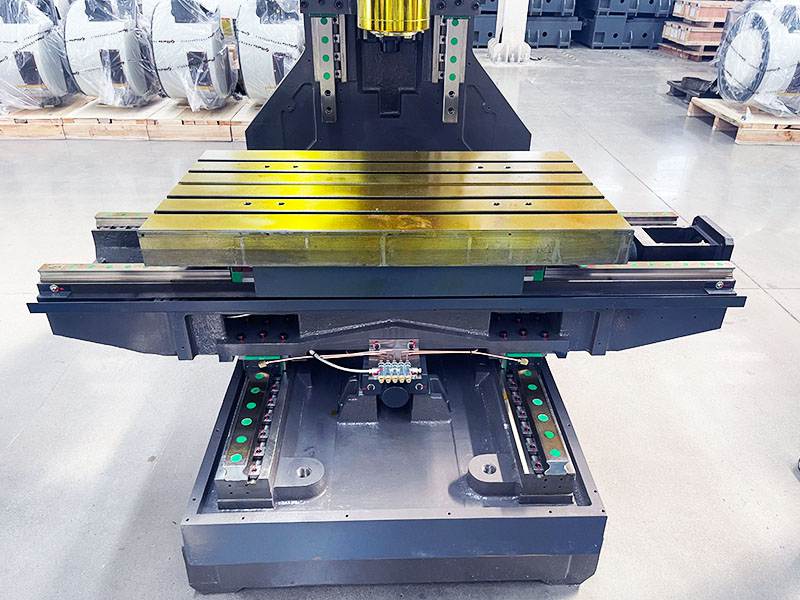

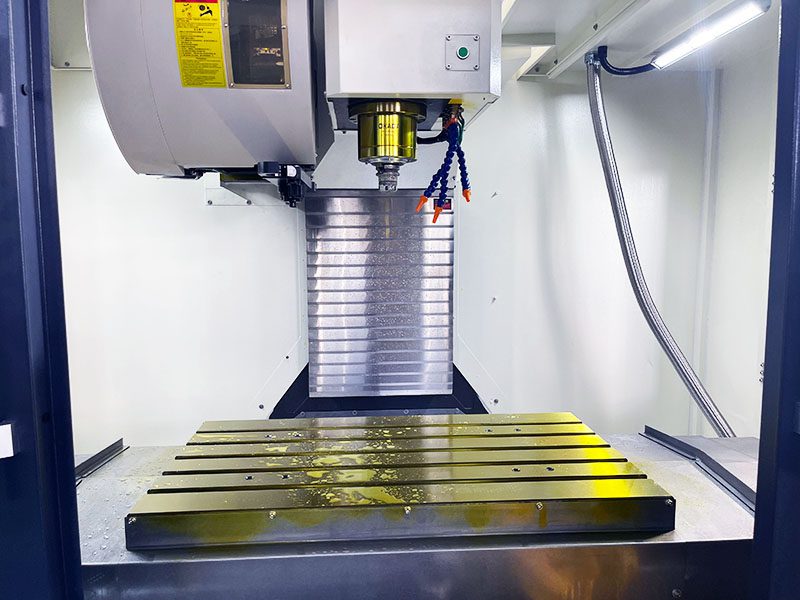

• Dual-layer worktable structure - Excellent vibration damping performance and balanced internal stress effectively prevent deformation.
• Anti-collision alarm system - Tool wear monitoring, tool breakage detection, tool life prediction alarm, and automatic shutdown control functions.

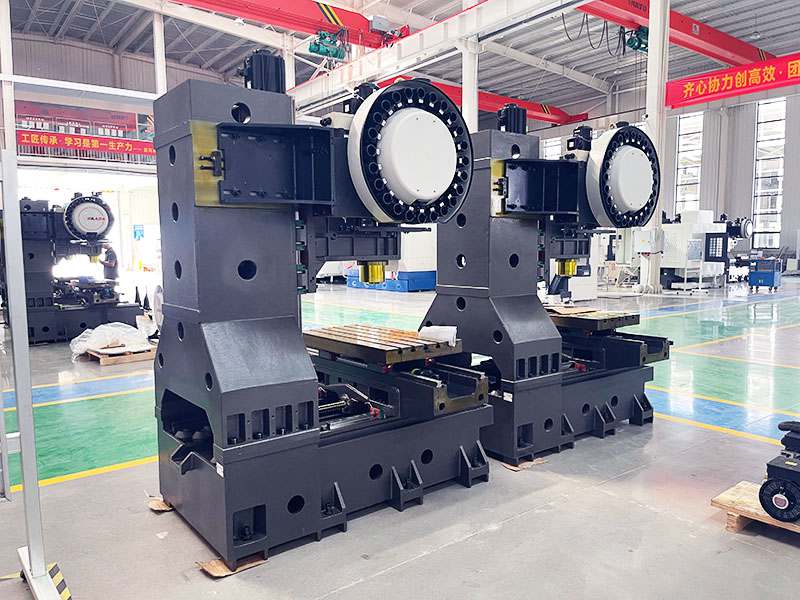

• Thermally symmetrical spindle-box design - Cross-reinforcing rib structure effectively suppresses thermal deformation.

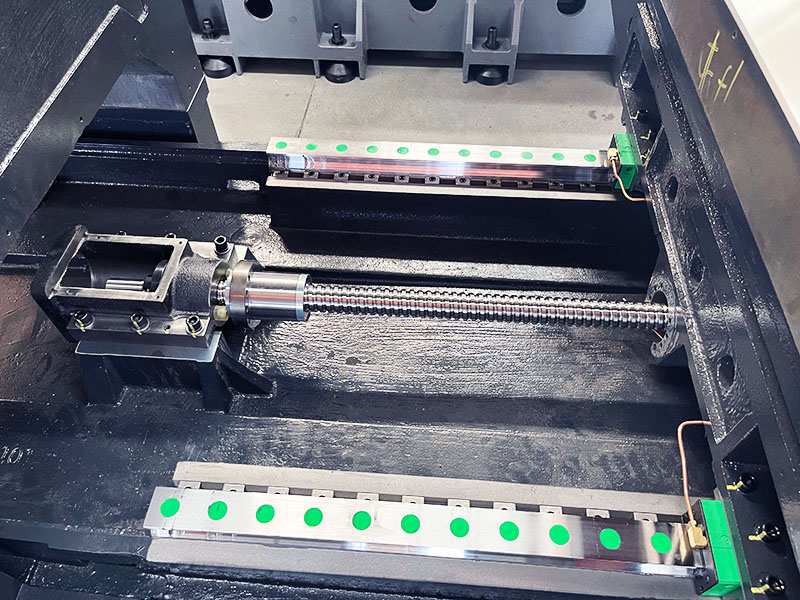

• X/Y axis linear guides and Z axis rigid guides are optional to meet individual customization needs.
• Intelligent integrated control cabinet - Long service life, high stability, low failure rate, resistance to arc interference, and convenient maintenance.

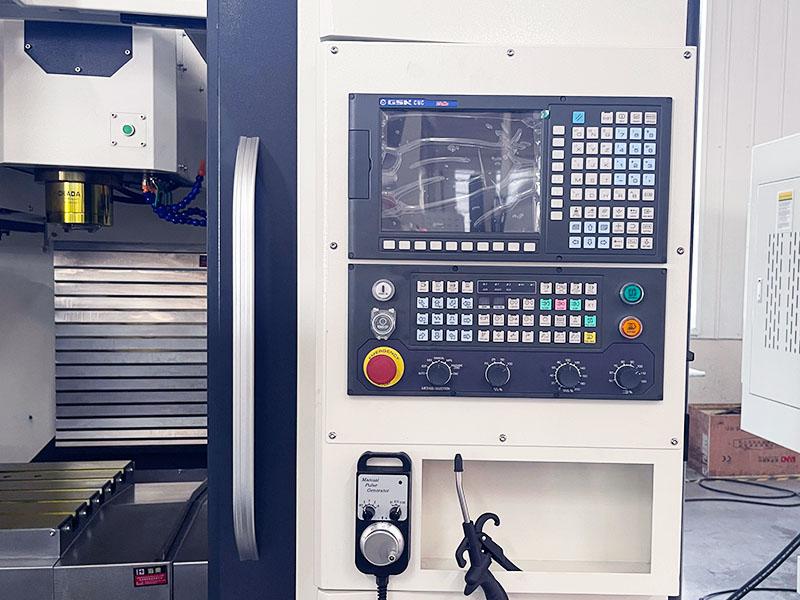

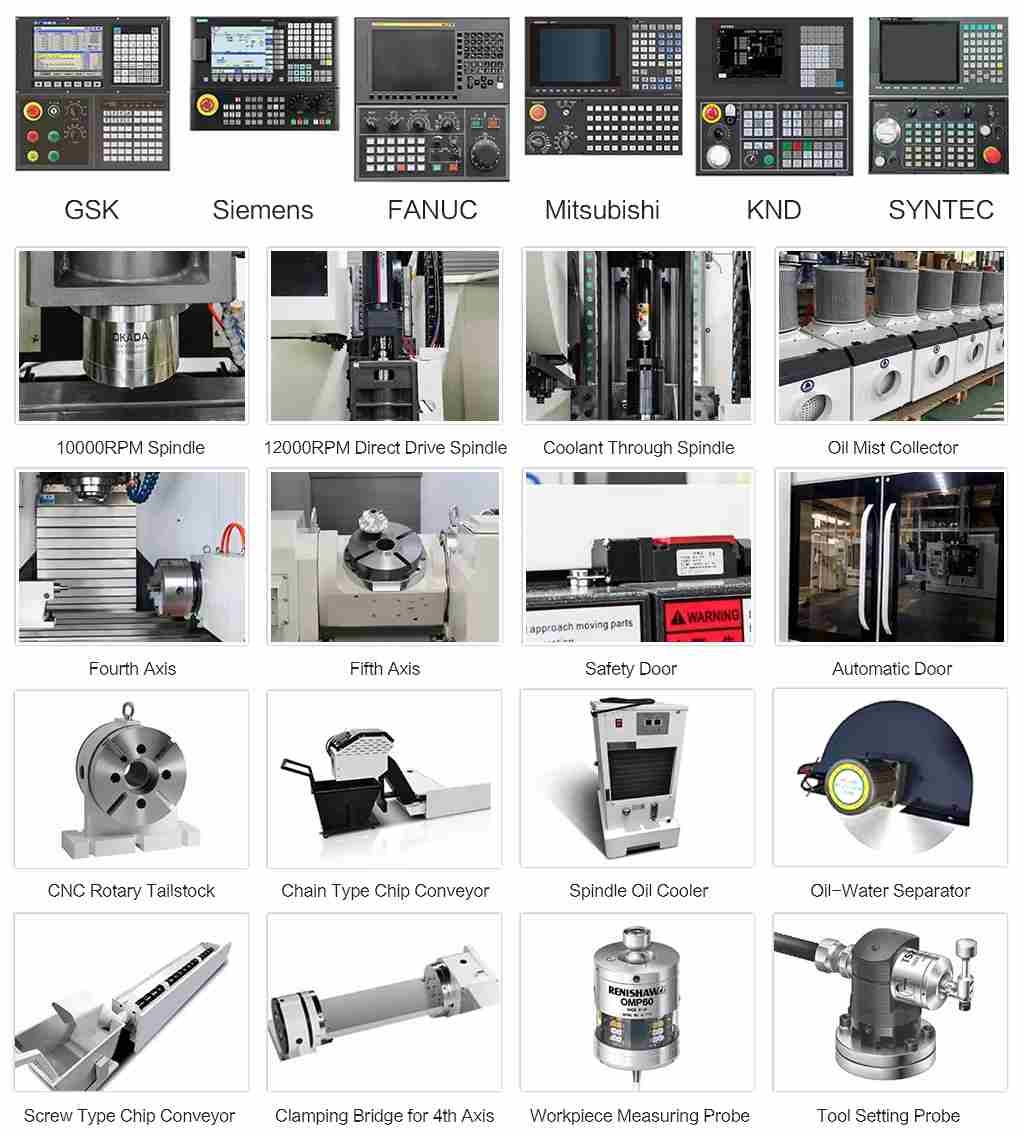

• CNC controller software options are available for GSK, Siemens, FANUC, Mitsubishi, KND and Syntec.
• Options include 4-axis or 5-axis machining capabilities.
Specifications

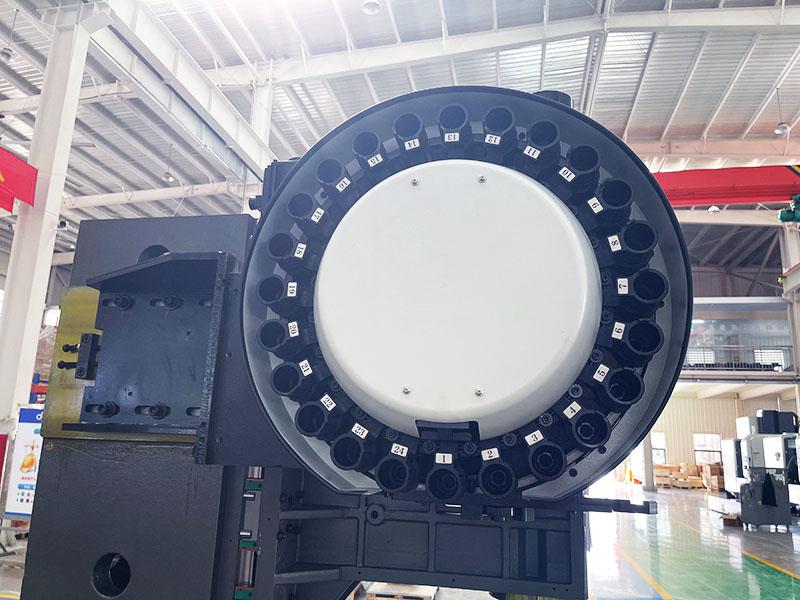

| Model | VMC855 | |
|---|---|---|
| Travel | X/Y/Z axis travel | 800×550×550mm |
| Spindle nose to worktable distance | 120-670mm | |
| Spindle center to column guideway distance | 550mm | |
| Worktable | Worktable(L×W) | 1000×550mm |
| Worktable maximum load | 600kgs | |
| T-slot (number-width-distance) | 5-18-90 | |
| Spindle | Spindle motor power | 7.5KW |
| Spindle speed | 8000rpm | |
| Spindle taper | BT40/Φ150 | |
| Spindle transmission type | Belt drive | |
| Tool Magazine | Tool capacity | 24pcs |
| Tools change way | Arm type | |
| Tool change time | 2.5s | |
| Accuracy | Positioning accuracy | 0.008mm |
| Repeated positioning accuracy | 0.005mm | |
| Feed Speed | X/Y/Z-axis rapid feed | 36/36/24m/min |
| Maximum cutting feed speed | 10000mm/min | |
| Others | Overall dimensions (L×W×H) | 2750×2300×2600mm |
| Weight | 5800kgs | |
| 3-Axis VMC | Movement | Tool moves along X (left/right), Y (front/back), and Z (up/down) axes for flat surfaces. |
| Capabilities | Simpler programming than multi-axis machines for many standard jobs, making it ideal for prototyping, tooling, fixture making, and producing simple 2D/2.5D parts, especially good at drilling, tapping, milling cavities, and making molds. | |
| 4-Axis VMC | Movement | Adds a rotary 4th axis (A or B) to the standard X, Y, Z. |
| Capabilities | Rotates the workpiece 360 degrees, allowing machining of holes, slots, or features on cylindrical parts in a single setup, making it ideal for helical shafts, drill bits, parts with indexed features. | |
| 5-Axis VMC | Movement | Adds two rotational axes (A, B, and C) to X, Y, Z. |
| Capabilities | The tool or workpiece can move in any direction and at any angle, machining any surface of a 3D object, such as curved or oblique surfaces in one setup, making it ideal for complex impellers, molds, dies, engines, and artificial bones. | |
Applications

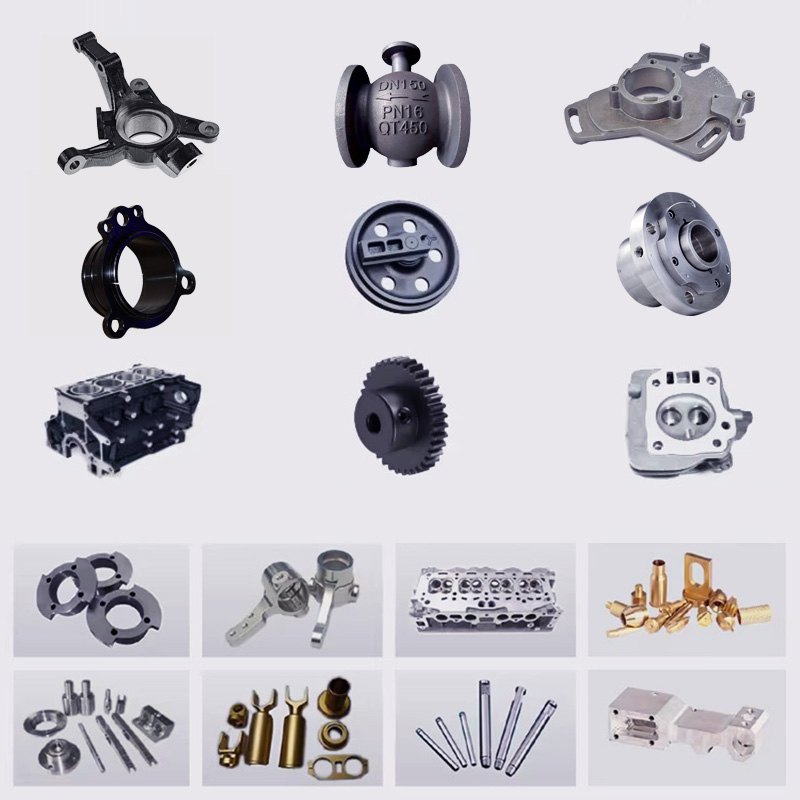

The VMC855 vertical machining center is primarily designed for small and medium-sized businesses to create precision planes, cavities, contours, and holes in communications, mold making, automobiles, aerospace, electronics, medical devices, watches, and dental industries.
Projects
Pros
• Small, fast, and powerful.
• The workpiece clamping and positioning are convenient with vertical machining centers.
• The cooling conditions are easily established, allowing cutting fluid to reach the tool and machined surface directly.
• The tool movement trajectory is easy to observe, making program debugging, inspection, and measurement convenient. Problems can be detected promptly, allowing for downtime for troubleshooting or modification.
• Compared to comparable horizontal machining centers, vertical machining centers feature a simpler structure, smaller footprint, and lower cost.
• The three coordinate axes are aligned with the Cartesian coordinate system, providing a clear and intuitive view consistent with the drawing, facilitating chip removal and falloff, and preventing scratches on the machined surface.
• The repeatability accuracy reaches 0.005 mm.
• The testing standards are twice as high as industry standards.
Cons
The VMC855 vertical CNC milling machine is limited by the column height and tool changer, which restricts the height of the workpiece. It also suffers from a smaller worktable, making it incapable of handling larger metal parts and molds. When machining cavities or concave surfaces, chip removal is difficult, potentially damaging the tool and the machined surface, hindering the machining process. This limits its ability to machine only a limited range of box-shaped workpieces.
