What is a 4 axis ATC CNC ROUTER?

The 4 Axis Wood CNC Router with a Big Size Rotary is a type of CNC machine that adds an additional rotary axis (usually referred to as the A, B, or C axis) to the traditional three axes (X, Y, and Z). This rotary axis allows the machine to rotate the workpiece during machining, enabling complex 3D shaping and carving that wouldn’t be possible with just three linear axes.

Here’s how it works:

• X, Y, Z Axes: These are the standard linear axes. The X and Y axes control the horizontal movement of the cutting tool across the workpiece, while the Z axis controls the vertical movement.
• A, B, or C Axis: The fourth axis, often referred to as the A axis (rotation around the X axis), B axis (rotation around the Y axis), or C axis (rotation around the Z axis), allows the workpiece to rotate. This adds the capability to machine parts on multiple sides without needing to reposition the workpiece manually.

Application

1. Building Industry (General Woodworking, Kitchen Cabinet & Door, Facades & Curtainwall, Column & Balustrade)
2. Sign& Advertising (Signage Indoor & Outdoor, Engraving& Bas-Relief, 3D Letters, Funeral)
3. Relief sculpture and 3D engraving and cylindrical project.

4. Mold Industry. Such as casting mold, Automobile, ship, yacht, aviation industry, rail transportation, etc.

5. Large 3D curved surface and shape processing.

6. Plastics & Composites (ACP, ACM and solid surface material, etc)
7. Non-ferrous metals & Marine

Machine Parts



Suitable Materials of 4 axis ATC CNC ROUTER

1. Wood: Plywood, Soft Wood, Hard Wood, MDF, Chipboard
2. Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE
3. Stone: Granite, Marble, Slate, Basalt, Pebbles, Natural Stone, Ceramic, Porcelain
4. Soft Metal: Aluminum, Brass, Copper, Mild Steel
5. Composite: Aluminium Composite, Copper Composite, Titanium Composite, Zinc Composite.

Features and Advantage of 4 axis ATC CNC ROUTER

The four-axis linkage engraving machine adopts the industrial control system four-axis linkage control, with excellent and stable quality, good maintenance, and usability, and can control the 3D machining of the cylinder and the rotation of the tetrahedron. Four-sided processing, especially suitable for three-dimensional processing and engraving of figure statues and European furniture legs and stone statues.

1. The new 4 Axis linkage motion control method can be used offline without the need for an additional computer.
2. Support A/C code format, as well as special M code control
3. Customizable I/O interface for editing, providing users with a wide range of development platforms
4. Intelligent processing memory function, support breakpoint continuation
5. Stronger anti-interference passed multiple CE tests
6. With parameter backup and parameter recovery function, it effectively prevents important parameter loss
7. It can realize the processing of complex workpieces such as cylinders, prisms, and polyhedrons.
8. Widely used in the system control of three-dimensional jade carving, 3D stone carving, Buddha statue, stair column, sofa, table legs, and other processing equipment

Parameter Data

Model Name	4 axis ATC CNC ROUTER
X, Y-Axis Travel	1300X2500mm(4X8ft),Option: 1500X3000mm(5X10ft), 2000X3000mm.
Z-Axis Travel	300mm,Option: 400mm, 500mm,600mm.
C Axis	± 90 °
Spindle Power	3.0KW, 4.5KW,6.0KW Air Cooling Spindle with 18000RPM, 9.0KW ATC Spindle with 24000RPM. ER20/ER25/ER32 collet.
Drive System X, Y and Z axis	German Helical Rack and Pinion for X and Y-axis. And Z-axis with TBI ball screw
Transmission X, Y and Z axis	HIWIN/THK Rail Linear guide and bearings.
Motor for X, Y, and Z	Stepper motor / AC Servo motor
Machine Structure	Thicken welded steel tube machine body. Rigid gantry and side support, aluminum T-Plate Extrusion Combined table, or vacuum table.
Working Voltage	380V/50HZ/60HZ,3PH. Option: 220V/50HZ/60HZ,3PH
Command Language	G Code & M Code
Operating System	DSP Handheld Controller/ NC studio/Mach3/Syntec controller
Lubrication	Automatic Lubrication System
Tool sensor	Automatic Tool Calibration
Dust Collector System	3.0KW Dust collector system with 2 bags
Collet	ER20,ER25,ER32 φ4, φ6,1/8, 1/2
Max. Rapid Travel Speed	40000mm/min
Max. working Speed	25000/min
Repeatability	+/-0.04mm/300mm
Working Accuracy	+/-0.03mm/300mm
Machining Function	2D Machining, 2.5D Machining, 3D Machining
Compatible Software	Type3, Ucancam, Artcam, Alphcam, Cabinet Vision, etc.
Other Names	CNC Router with Rotary Axis, Rotary CNC Router,4 Axis CNC Router machine, 4 Axis Wood Router
Gross Weight	2500 KGS
Package Size	3750*2250*1950mm

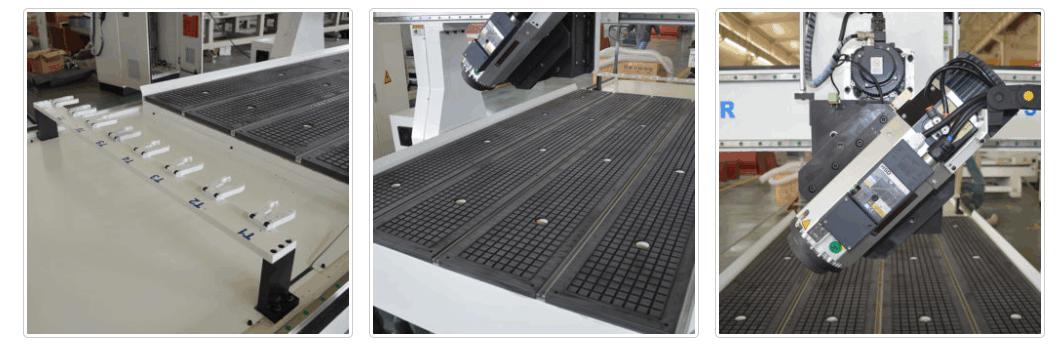

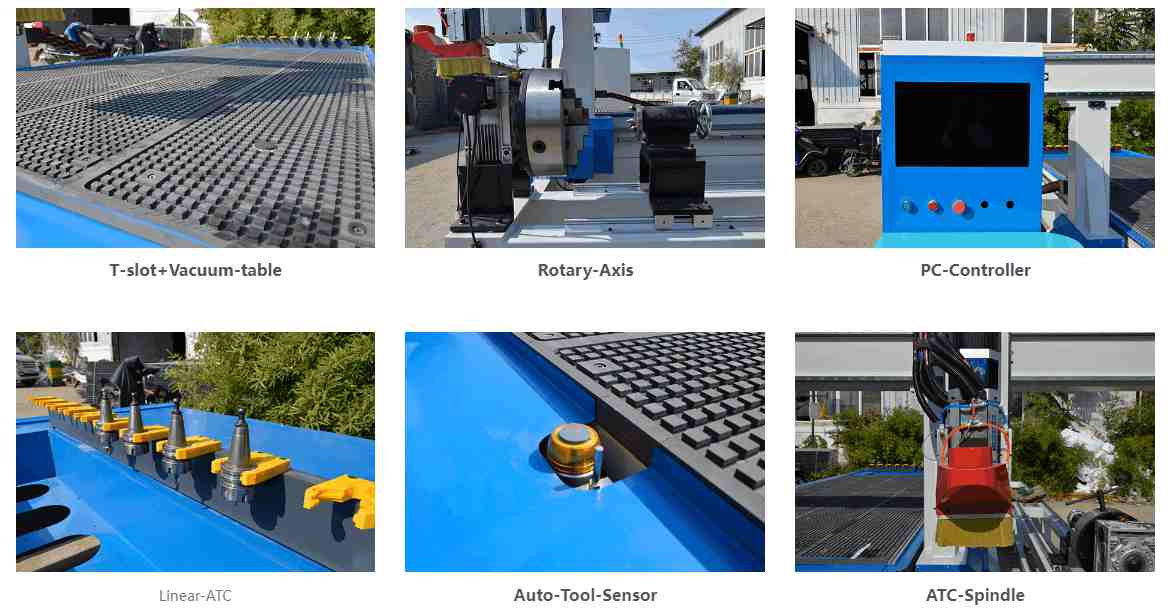

Machine Pictures

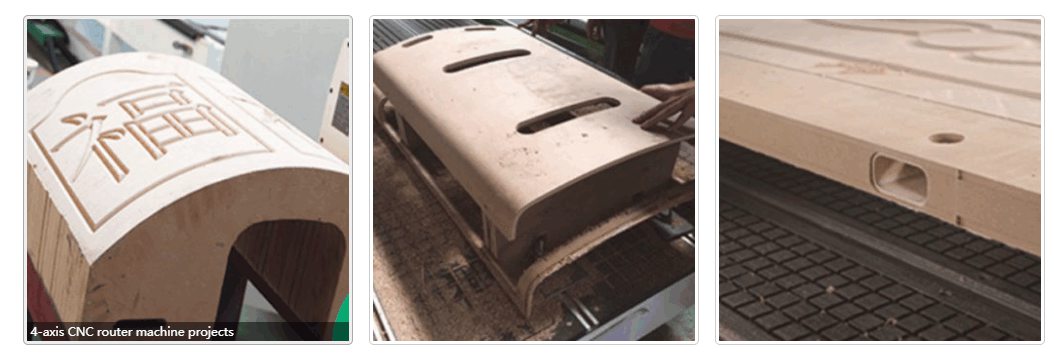

4 Axis Wood CNC Router Working Projects
