CNC router with 4 independent spindle heads. Four spindles can make the same projects at the same time. It will be very productive and high efficiency if you need massive production. Meanwhile, if you don’t need four spindles to work at the same time, each spindle also can work separately on the whole machine table working area.

Features of 4 Spindle Heads CNC Router

Multi-spindle engraving: Multi-axis can engrave the same pattern at the same time, which greatly improves the processing speed and can reach the processing efficiency of multiple single-axis machine tools, with good product consistency and high quality.

Single spindle engraving: This machine can move a single spindle to one side to realize single spindle engraving, which is suitable for small batch product processing or large plate processing. Highlight humanized design and control product cost.

1) Working area: 1500mm”3000mm”200mm (X,Y,Z-axis)
2) Solid steel frame construction
3) 4 Sets of 4.5kw HQD Air cooling spindle
4) 4 sets Yako Stepper motors and drivers
5) T-Slot vacuum table
6) 20mm HIWIN Linear Guide from Taiwan
7) NC Studio controller system
8) Drive System: X and Y axis: Helical Rack and Pinion, Z-axis: TBI ball Screw
9) 5.5kw BETA Inverter
10) Manual Lubrication system
11) Japan OMRON limit switch
12) ЗPH 240V 50HZ
13) Plywood case package

Applications of CNC Router with 4 Independent Spindle

Wood furniture industry: wave board, fine grain, antique furniture, wooden doors, screens, craft window sashes, composite doors, cabinet doors, interior doors, sofa legs, headboards, etc.

Advertising industry: advertising logo, sign production, acrylic carving, and cutting, crystal character production, sandblasting molding, and other advertising material derivatives production.

Mold industry: engraving of metal molds such as copper, aluminum, and iron, and non-metal molds such as artificial marble, sand, plastic cloth, PVC pipes, and wood panels.

Suitable Materials:

• Wood: Solid wood, MDF, Plywood, Chipboard.
• Plastic: PVC, ABS, Acrylic, Plastic.
• Marble: Artificial Stone, Marble, Granite, Ceramic,
• Sign Material: Foam, Cupboard, Styrofoam, Leather, Plastic carpet, corrugated paper,
• Metal: Steel, Metal, Stainless, Pipe, tube, Corrugated metals, expanded metal, or flat sheet stock.
• Soft Metal: Aluminum, Brass,
• Composite: Aluminum Composite, Copper Composite, Titanium Composite, Zinc Composite.

Technical Data of CNC Router with 4 Independent Spindle

Model Name	CNC Router FS1530-4H with Separate Spindles
X, Y-Axis Travel	1500X3000mm(5X10ft), Option:1300*2500mm(4X8ft), 2000X3000mm.2000X4000mm.
Z-Axis Travel	200mm, Option: 300mm,400mm, 500mm,600mm.
Spindle Power	4 Sets of 4.5kw HQD Air cooling spindle
Drive System X, Y, and Z-axis	Drive System: X and Y axis: Helical Rack and Pinion, Z-axis: TBI ball Screw
Transmission X, Y, and Z-axis	HIWIN/THK Rail Linear guide and bearings.
Motor for X, Y, and Z	4 sets Yako Stepper motors and drivers
Machine Structure	Thicken weld steel tube machine body. Rigid gantry and side support, aluminum T-Plate Extrusion Combined table or vacuum table.
Working Voltage	220V/50HZ/60HZ,3PH or 380V/50HZ/60HZ,3PH
Command Language	G Code & M Code
Operating System	NC studio/ DSP Handheld Controller/ Mach3/SYNTEC controller/SIEMENS
Collet	ER20,ER25,ER32 φ4, φ6,1/8, 1/2
Lubrication	Automatic lubrication system
Tool Calibration	Automatic tool sensor
Dust collector system	3.0KW Dust collector system with 2 bags
Max. Rapid Travel Speed	40000mm/min
Max. working Speed	25000/min
Repeatability	+/-0.04mm/300mm
Working Accuracy	+/-0.03mm/300mm
Machining Function	2D Machining, 2.5D Machining, 3D Machining
Compatible Software	Type3, Ucancam, Artcam, Alphcam, Vectric, Enroute, MasterCAM , Cabinet Vision, etc.
Other Names of the CNC Router	Multi-Spindle CNC Router, Wood Router, CNC Wood Router, CNC Router Machine, Router Machine, Wood CNC Machine, CNC Cutting Machine, CNC Wood Carving Machine, CNC Engraver, 3 axis CNC Router, Best CNC Router, CNC Router Price, Wood Router, Wood CNC Router,  Aluminum CNC Router. CNC Engraving Machine, CNC Milling Machine, CNC Drilling Machine, Best CNC Router, 5×10 CNC Router, Cheap CNC Router, CNC Carving Machine, China CNC Router.
Gross Weight	2300 KGS
Package Size	3800*2250*1950mm

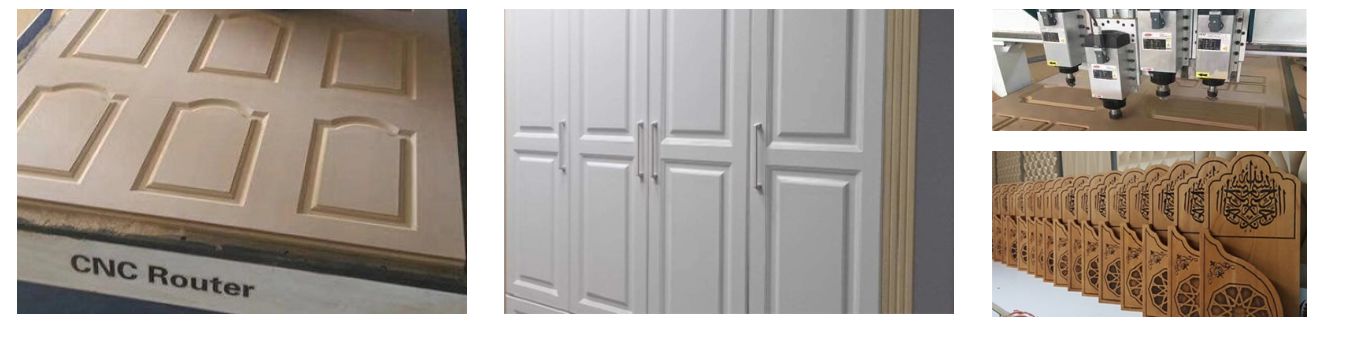

Projects by this Multi-Spindle CNC Router
