Product Description
Our ATC CNC woodworking router machines are carefully designed and manufactured to meet your application and budget requirements. All of our CNC milling machines are durable, reliable, and have excellent customer support. The ATC CNC router machine is a CNC machine tool with an automatic tool change spindle, vacuum table, dust collector, automatical lubrication system, safety laser light bar which protects the safety of the operator. The CNC router tool can automatically change the CNC router ATC work according to the work needs, without manual operation, which will greatly improve work efficiency.
Features of ATC CNC Woodworking Router
Forsun new ATC CNC Router excels at delivering unparalleled cut quality and consistency. With humanized design, even for the most beginner CNC Router Machine user can be operating a new CNC Wood Router in just days, not weeks. This Wood CNC Router is mainly designed for the panel processing sector, it also excels at machining plastic and non-ferrous metals. This smart ATC CNC Router is ideal for those workshops that are looking to produce the maximum number of orders with quick and reliable delivery times.
- 12HP HSD Spindle, ISO 30,24000RPM, ER32
- 1000W AC Servo Motors
- Smart NC Studio Controller
- Linear Automatic Tool Changer with 10 pcs positions.
- Safety laser light bar
- Vacuum table in zones
- Auto lubrication system
- Dust collector system
- The automatic pin location device
- 380V 3PH or 220V, 3 Phase
Applications of the ATC CNC Wood Router Machine
This CNC Router Machine was made especially for industries such as Foam mold making, Cabinet-making, plastic sheeting processing, and sign making, aluminum cutting, etc.
- Woodworking:
Solid wood doors, kitchen cabinets, wardrobes, tables, beds, computer desks and cylinders, table legs, wooden crafts, painted doors, screens, hand fan windows, etc. - Advertising:
Advertising signs, sign production, acrylic cutting, plastic molding, production of advertising decoration products of various materials. - Mold industry:
Carving wood, foam, EPS, copper, aluminum molds, and non-metallic molds such as artificial marble, plastic cloth, PVC pipe, wood, etc.
Suitable Material of Linear ATC CNC Woodworking Router
- Wood: Plywood, Soft Wood, Hard Wood, MDF, Chipboard
- Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE
- Stone: Granite, Marble, Slate, Basalt, Pebbles, Natural Stone, Ceramic, Porcelain
- Soft Metal: Aluminium, Brass, Copper, Mild Steel
- Composite: Aluminium Composite, Copper Composite, Titanium Composite, Zinc Composite.

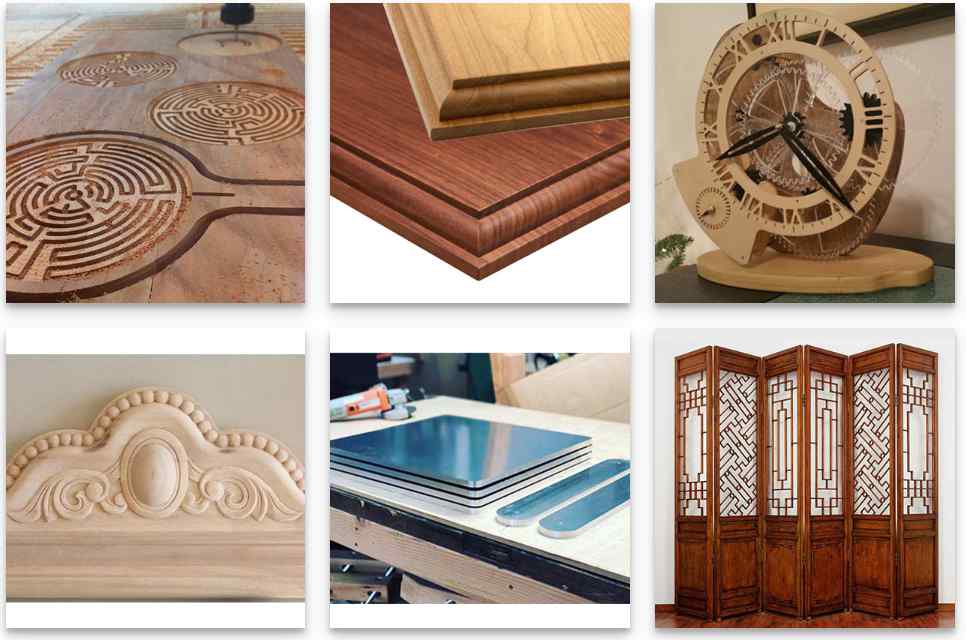

ATC Wood Cutting Machine Projects Gallery
Parameter Data of ATC CNC Wood Router Machine
| Model Name | Good Quality Linear ATC CNC Woodworking Router Machine |
| X, Y-Axis Travel | 1500X3000mm(5X10ft), Option:2000X3000mm. 1300X2500mm(4X8ft), 2000X4000mm |
| Z-Axis Travel | 200mm, Option: 300mm,400mm,500mm,600mm |
| Spindle Power | 9.0KW ATC Spindle with 24000RPM, ISO30, ER32 |
| Auto Pusher | Auto Pusher (optional) |
| Tool Magazine | Linear Automatic Tool Change with 10 pcs positions Tool Magzine. Option: carousel type Auto tool changer magazine |
| Motor for X, Y, and Z | 1000W AC Servo motor |
| Operating System | NC Studio Controller Option: Syntec controller. SIEMENS Controller, DSP |
| Drive System X, Y, and Z-axis | Helical Rack and Pinion for X and Y-Axis, High precision ball screw for the Z-axis. |
| Transmission X, Y, and Z-axis | HIWIN/THK Rail Linear guide and bearings. |
| Machine structure | Cast steel table structure and side support, aluminum T-Plate Extrusion Combined vacuum table |
| Working Voltage | 220V/50HZ/60HZ,3PH 380V/50HZ/60HZ,3PH |
| Command Language | G Code & M Code |
| Collet | ISO30,φ4，φ6,1/8,1/9 |
| Lubrication | Automatic lubrication system |
| Tool Calibration | Automatic tool sensor |
| Dust collector system | 3.0KW Dust collector system with 2 bags |
| Max. Rapid Travel Speed | 80000mm/min |
| Max. working Speed | 45000/min |
| Repeatability | +/-0.04mm/300mm |
| Working Accuracy | +/-0.03mm/300mm |
| Other Names of the CNC Router | CNC Wood Router, CNC Router Machine, Router Machine, Wood CNC Machine, CNC Cutting Machine, CNC Wood Carving Machine, CNC Engraver, 3 axis CNC Router, Best CNC Router, CNC Router Price, Wood Router, Wood CNC Router, 3D CNC Router, Router CNC, Aluminum CNC Router. CNC Engraving Machine, CNC Milling Machine, CNC Drilling Machine, Best CNC Router, 4×8 CNC Router, Cheap CNC Router, CNC Carving Machine, China CNC Router, 3d Wood Carving Machine. |
| Machining Function | 2D Machining, 2.5D Machining, 3D Machining |
| Compatible Software | Type3, UcancCAM, ArtcCAM, AlphCAM, Vectric, Enroute, MasterCAM Cabinet Vision, etc |
| Gross Weight | 2500 KGS |
| Package Size | Plywood Package 4000*2250*1900mm |
Good Quality Linear ATC CNC Woodworking Router Machine
3-axis linear ATC CNC wood router equipped with multi-tool linear magazine and high-speed ATC spindle, auto-switch tools for cutting, drilling, grooving and relief carving, fitted with vacuum T-slot table, processes wood, acrylic, aluminum and composite panels.
