Product Description
Why Pick Smart Nesting CNC Router Machines for Cabinet Making
✓ Highly automated panel nesting solution featuring automatic loading, automatic pushing, and automatic conveyor-based unloading systems.
✓ Increases material utilization by 10%.
✓ Reduces reliance on skilled labor.
✓ Minimizes sorting steps and sorting errors.
✓ Saves time and labor costs when processing complex workpieces.
✓ Includes grooving and drilling capabilities.
✓ Enhances product quality and production efficiency.
✓ Optimizes workflows and reduces production costs.
✓ Automates the entire operational cycle—including loading, nesting, drilling, cutting, engraving, and unloading—replacing manual labor with automation to eliminate errors, boost output, and lower costs.
What is a Smart Nesting CNC Router Machine Used for?
This intelligent CNC nesting machine is specifically designed for the production of various custom cabinetry, including cabinet doors, decorative units, wall-mounted cabinets, kitchen cabinets, base units, corner cabinets, and other wooden home cabinetry. Capable of handling products of varying complexity, the machine offers a wide range of functions—such as engraving, milling, grooving, slotting, cutting, side drilling, and chamfering—enabling the complete end-to-end production of custom furniture.
Technical Parameters of Smart Nesting CNC Router Machine for Cabinet Making
| Model | STM2130C |
| Working Area | 2100*3000*200mm |
| Spindle | 9KW air cooling spindles or HSD spindles |
| Drilling head | 5+4 drill bank |
| Software | Cabinet vision software |
| spindle speed | Adjustable 0-24000 rpm |
| Working accuracy | ±0.02 |
| Maximum Travel | 60m/min |
| Drive System (X & Y Axis) | Rack and pinion transmission,Taiwan Hiwin square Guide rail |
| Drive System (Z Axis) | Taiwan TBI rolling ball screw,Taiwan Hiwin square guide rail |
| Electrical parts | Schneider |
| Motor and Driver | AC Servo Motor and Drive |
| Working table | Vacuum table |
| Vacuum pump | 7.5kw air cooling |
| Lubrication System | Automatic oiling system |
| Control system | Taiwan Syntec control system |
| Power Requirements | AC380V/50HZ/3 Phase |
| Command | G code (HPGL,U00,mmg,plt) |
A Showcase of the Details of Smart Nesting CNC Router Machine for Cabinet Making

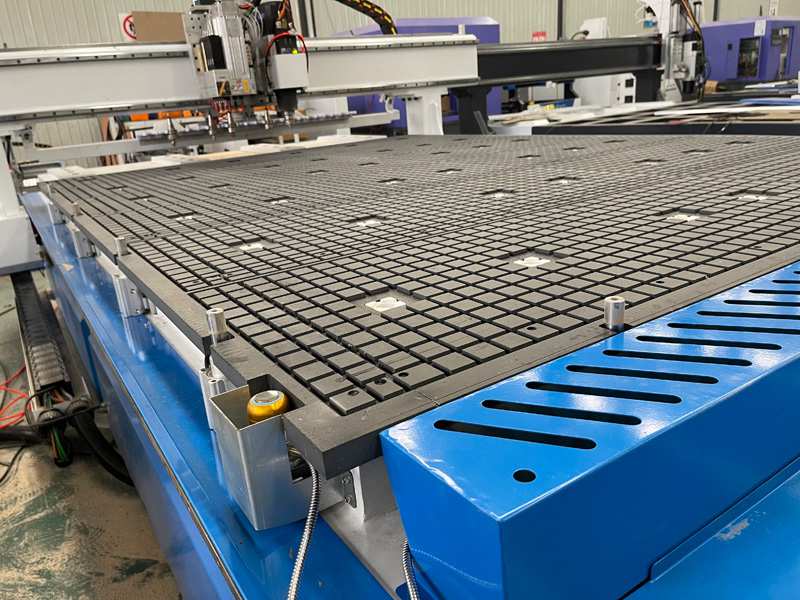

The dual-vacuum suction table ensures efficient machine operation.

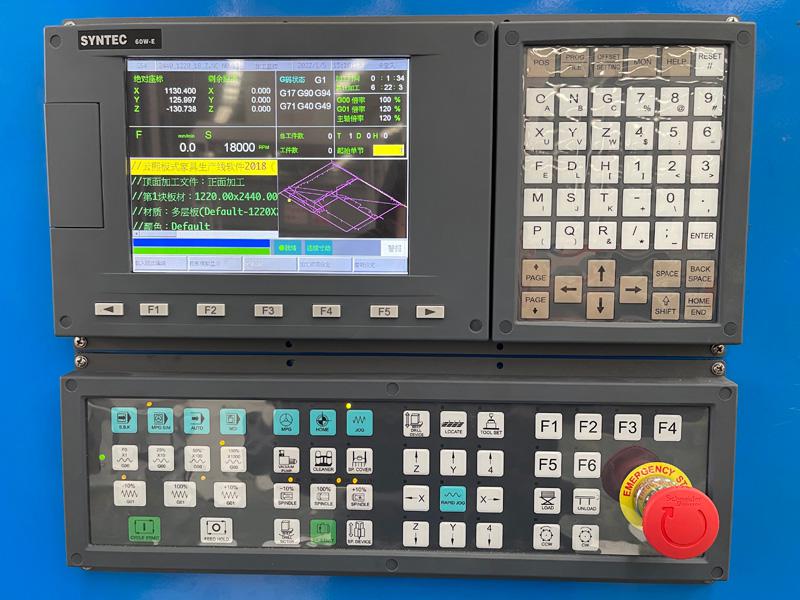

This machine utilizes an advanced Syntec 6MA control system, featuring a user-friendly interface and simple operation, allowing for efficient performance with minimal training and without the need for specialized technical personnel.

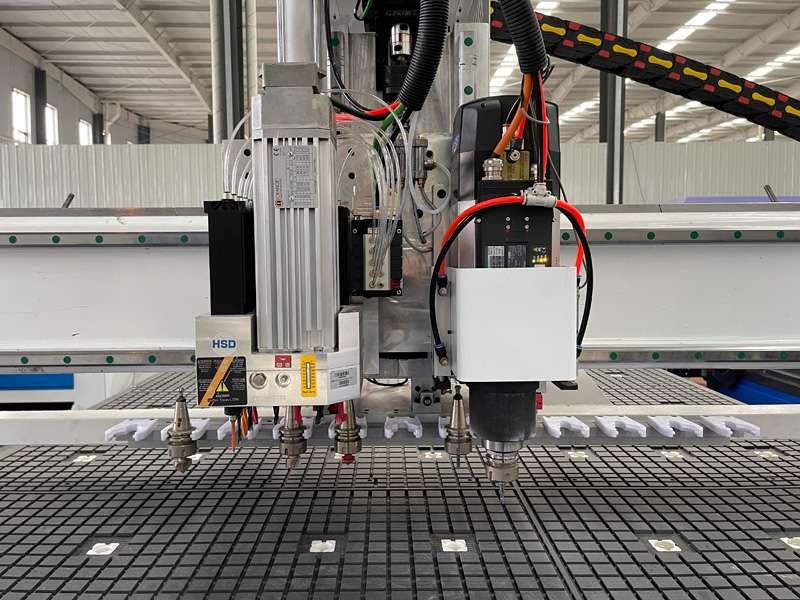

It comes with an HSD spindle for high-precision engraving and a domestic 6kW air-cooled spindle for high-speed cutting.

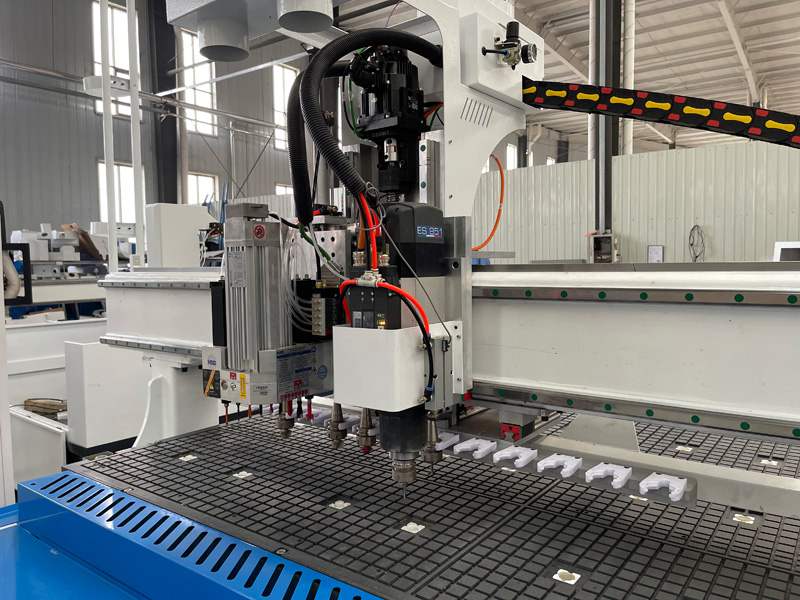

5+4 Multi-axis Drilling Unit—The drilling bank equipped on this machine offers great flexibility for your machining operations.
It utilizes a foot-pedal control method, with the lifting and lowering of the positioning cylinder managed via a remote control device; eliminating the need for computer operation makes the process both time-saving and more convenient.
